Memory clearance is something which many system builders and enthusiasts are eager to discover since this will ascertain whether a memory kit will be compatible with the CPU cooler or not. To demonstrate this a low profile memory kit is used.

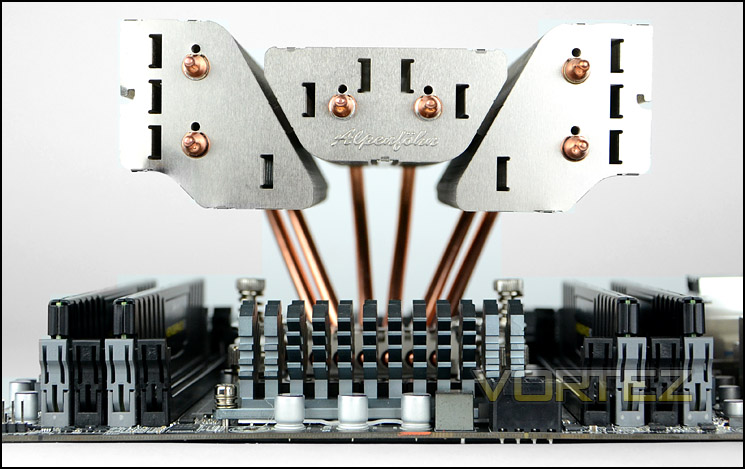

Gotthard installed without fan
Gotthard installed with fan
As you can see there is approximately 5.5cm for the total height of the memory sticks at the lowest point. This will allow for the installation of memory kits which are extremely tall such as Corsair Vengeance which are 5.5cm exactly.

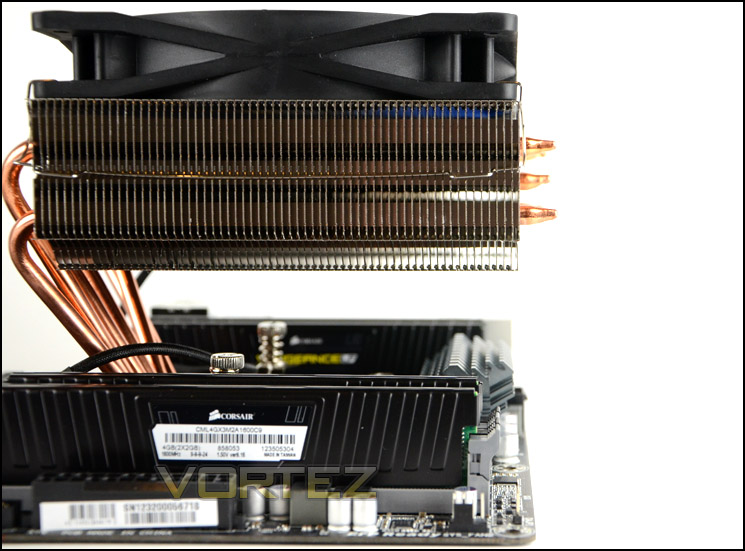

An observation of memory clearance

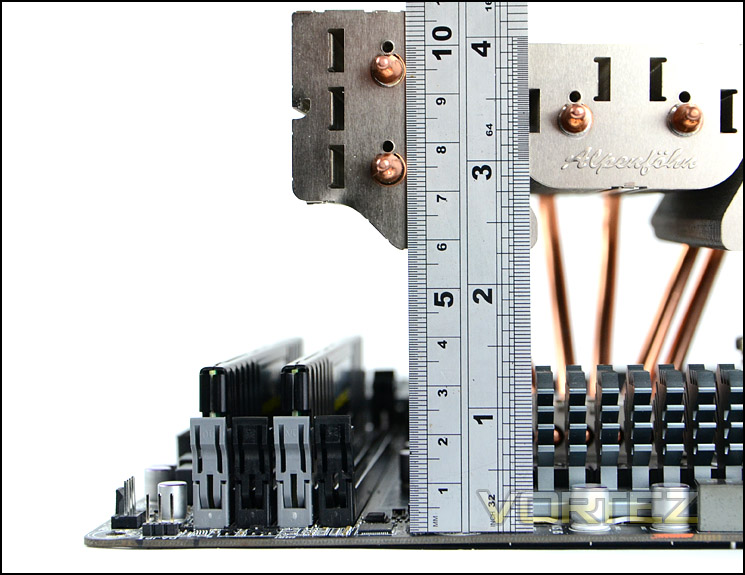

Memory clearance measure
Due to its nature, Gotthard can overhang the motherboard slightly and this should be taken into account. If you have tight clearance at the top of the computer chassis then be aware that you will need an additional 2cm for Gotthard to fit suitably.

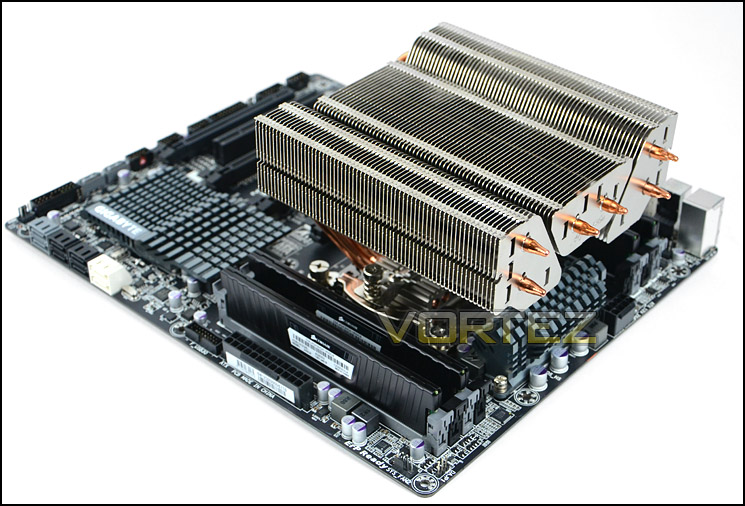

Gotthard overhangs the motherboard
