Antec High Current Pro 1000W Platinum Review

👤by David Mitchelson Comments 📅22-08-12
Closer Look (Internal)

** Opening a PSU voids warranty and should be done at the user’s own risk **

Sliding the top panel off the HCP-1000 reveals the inner-workings of the unit. The layout is very tidy and takes the form of a server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology. HCP-1000 uses an extensive range of protective standards which include: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge & Inrush Protecion (SIP), No Load Operation (NLO) & Brown-Out Protection (BOP).

HCP-1000 also takes advantage of two Japanese hold-up solid capacitors which are rated at 450v and 105C.


The internal layout of HCP-1000

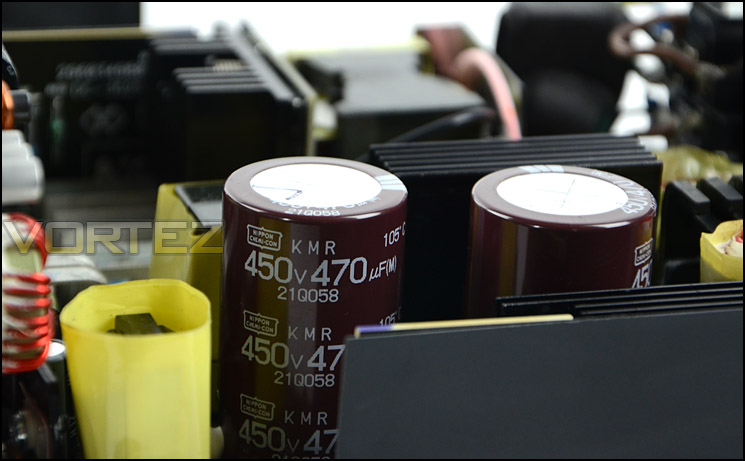

Dual hold up CAPs are high-quality Japanese made


On closer inspection we can now identify what cooling fan Antec have chosen to go with a Delta AFB1312M which is 135mm dual ball bearing fan. Antec have given HCP-1000 a thermal manager that helps to keep noise and heat controlled during different load states.


The 135mm cooling fan is Delta branded
