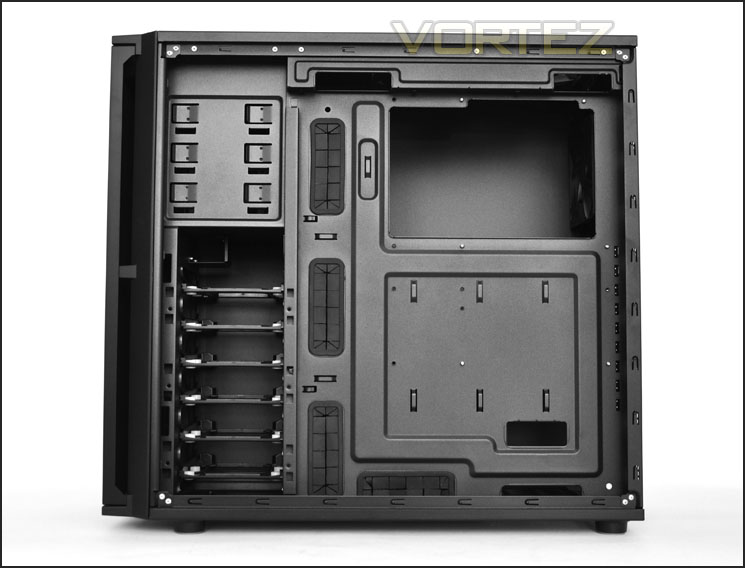

Both side panels on the P280 are secured in place via 2 thumbscrews. Upon removing these thumbscrews a rather spacious internal layout is revealed. Inside, there is support for XL-ATX and high end components. Tool-less design mechanisms have been implemented throughout meaning the installation process should be easier and there are plenty of cable management grommets giving the enthusiast control over the tidiness.





The PSU seating area doesn’t have any anti-vibration pads as such but there is plastic rather than metal in this region so scratching won’t be an issue. Underneath there is a removable fan filter. This filter slides out the side of the chassis and can be cleaned easily.

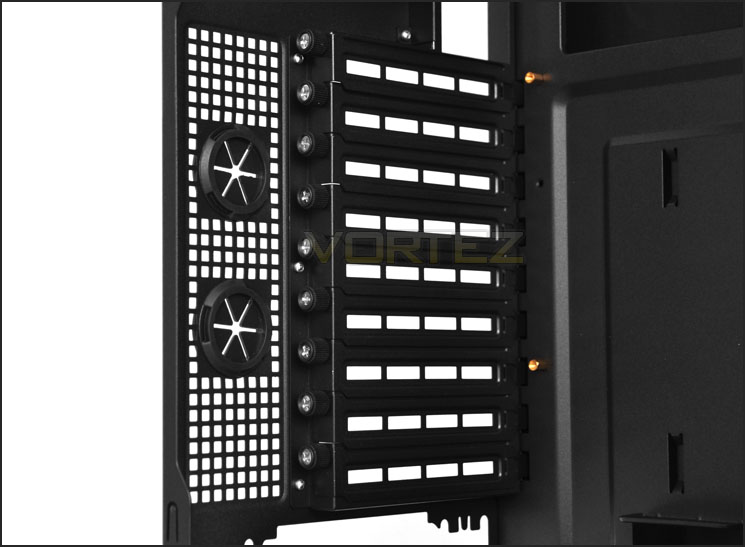

Further up there are 9x PCI expansion slot covers. Each cover has ventilation holes for better airflow within the case and there are also thumbscrews for quick and easy access. Next to the PCI section are 2x circular rubber grommets for feeding tubing through.



Over the page we will continue our tour of the interior.
