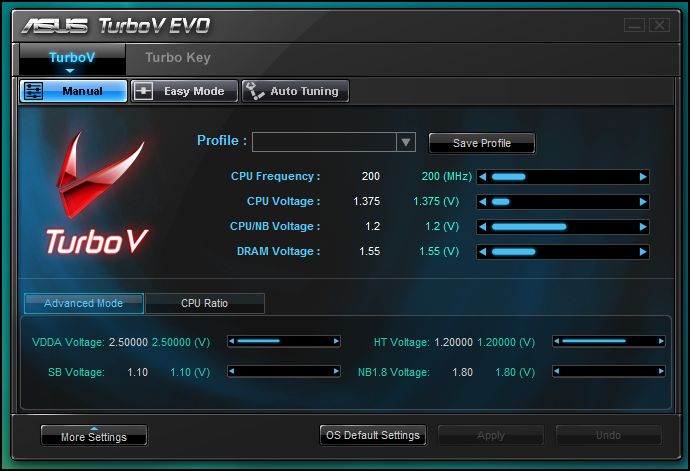

TurboV Evo allows on the fly adjustment of various voltages and clock speeds across the board. This will for example allow users to clock up their PC for a gaming session and then return those clocks to normal afterwards.


TurboV EVO.

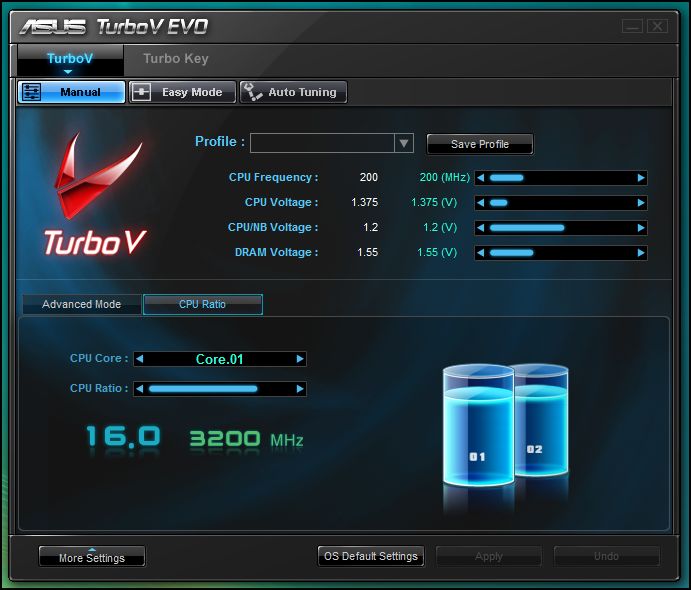

CPU ratio's (i normally consider these to be multipliers) can also be changed meaning fast straightforward overclocks can be achieved. This is much more convenient than the normal process of powering down the PC to make the same changes.


Altering the multi makes for an easy overclock.

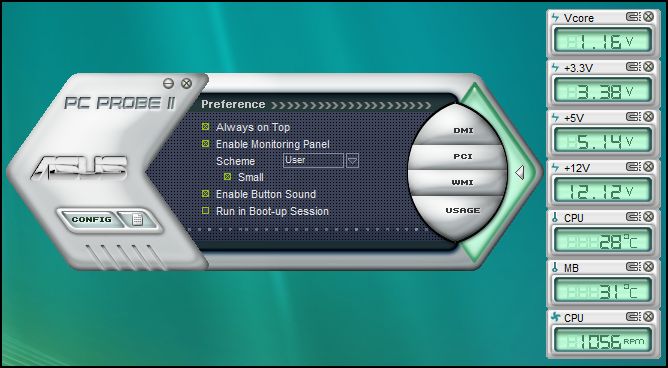

PC Probe II is also available. This also offers some of the functionality of the others and allows monitoring of voltages, temps and fan speeds.


PC Probe II.

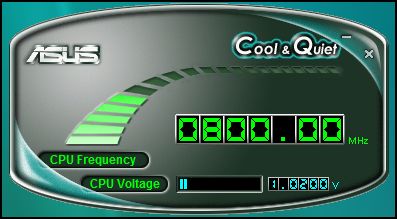

ASUS have also provided a Cool & Quiet program to show when the PC drops into this state. As you can see when the PC is idling the dual core drops to an 800mhz clock speed and voltage is reduced to almost 1v.


Cool and indeed quiet.

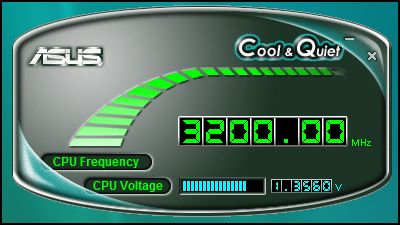

Under load the cpu is returned to its stock 3.2ghz clock speed while the voltage rises accordingly to maintain full system stability. It's more an indicator of current system state than an active control and adjustment program but it's useful none the less!


Bumps the clock and voltage up when power is needed!

Finally we come to the last bundled utility. AMD's Overdrive suite is a comprehensive suite that offers a full overview of your system status as well as allowing some level of control over various aspects of your PC. For example here we see basic system info.


System information.

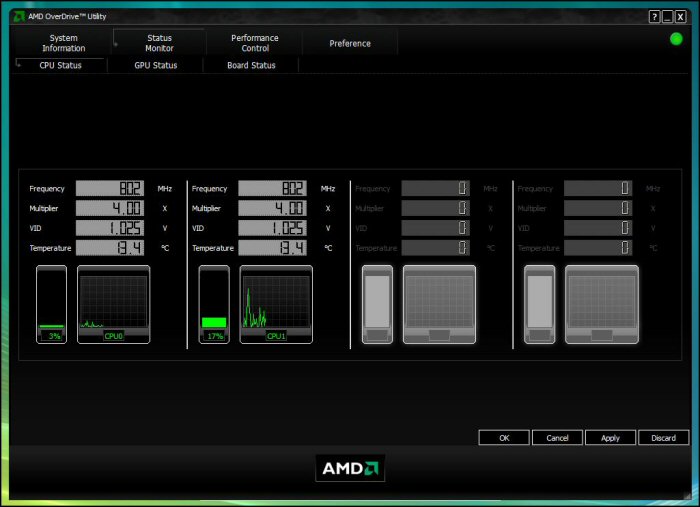

CPU status is available and so too is monitoring of other components including the GPU and the M4A89GTD PRO/USB3 itself.


Various status pages allow real time monitoring.

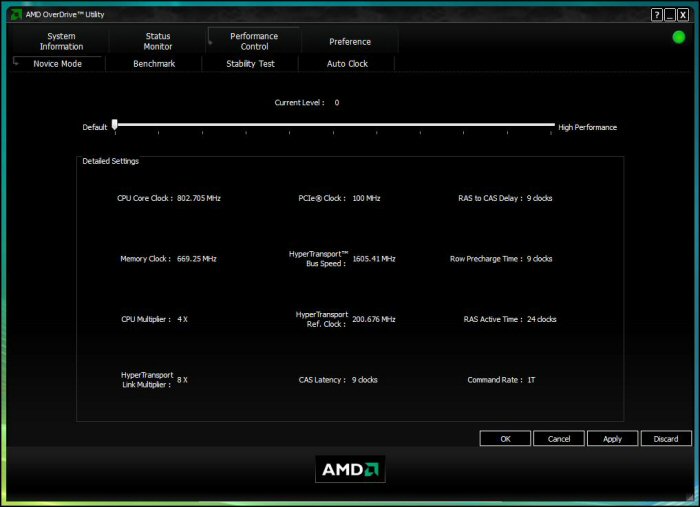

Here we have a suite allowing basic clocking options as well as tabs at the top of the screen allowing benchmarking, stability testing and auto clocking if so desired!


Basic clocking, benching, stability testing and automatic clocking all in one program.
