be quiet! Silent Base 600 Window Review

👤by David Mitchelson Comments 📅06-10-15
Interior (Continued)

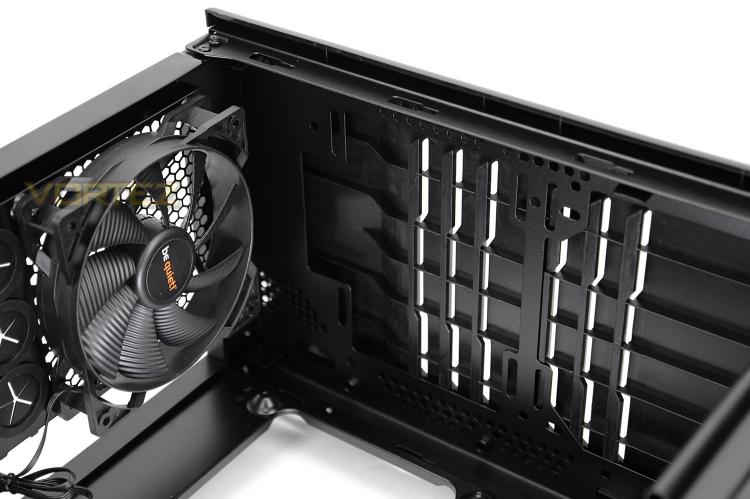

Located at the back of SB 600 there is a Silent Wings 2 120mm cooling fan. This fan acts as an exhaust and can be connected to the supplied three-channel fan controller.

At the top of the case there are mounting holes to support 2x 120/140mm cooling fans. It’s also possible to install a radiator at the top, more on this later – to properly access these mounting holes the top fascia needs detaching (As shown in the Clearance section of this review).

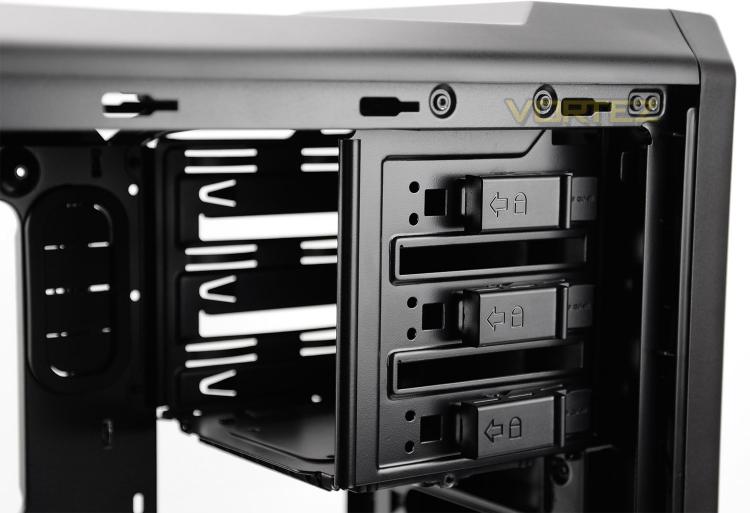

On the other side of SB 600 there are 3x 5.25” drive bays – each have a tool-less design to attach/detach devices by using a simple latch system as per picture above.

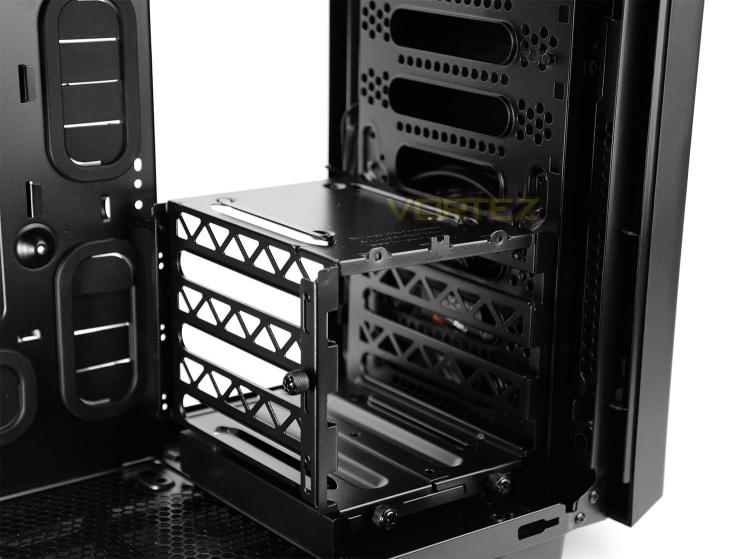

SB 600 features just a single HDD cage which can house up to 3x 3.5” drives. Each drive requires rubber attachments which are shown in the next section of this review.

This cage can be completely detached from the chassis if required, but the metal stand underneath is riveted and is therefore deemed a permanent fixture.

On the next page we’ll install kit inside the case and identify how much space SB 600 has for hardware.
