In this next section, we’ll be identifying the clearance limitations within AIR 240 in a number of key locations. This helps system builders understand what hardware will fit inside the chassis.
CPU Cooler
Lower profile coolers are required
Inside AIR 240, we can install CPU coolers with a maximum height of approximately 130mm. This will restrict the options available and system builders are likely to have to go down the low-profile route for air cooling. Pictured inside our build, we have Noctua’s NH-L12.
Graphics Card
Good clearance for graphics cards
Since there are no HDD cages to obstruct graphics cards inside AIR 240, we can house multi-GPU configurations without any hassle and this case can accommodate cards with a maximum length of approximately 290-300mm (11.5-12”). Pictured is XFX’s HD7970 DD which is 10.5”.
Water Cooling
Space at the top of AIR 240 for 240mm radiators
Up at the top of AIR 240 there are fan mounts for 2x120mm which paves the way for 240mm radiators to be installed. Pictured, we have installed Corsair’s H100i.
There is also allocation at the front of the case for the same configuration since there are 2x120mm mounting holes. Furthermore, the bottom of the case can also house the same unit but only if uses are installing a Mini-ITX motherboard. With Micro ATX installed, a radiator at the bottom causes an obstruction.
So to summarise – AIR 240 can have a 240mm radiator installed at the top, front and bottom of the chassis.

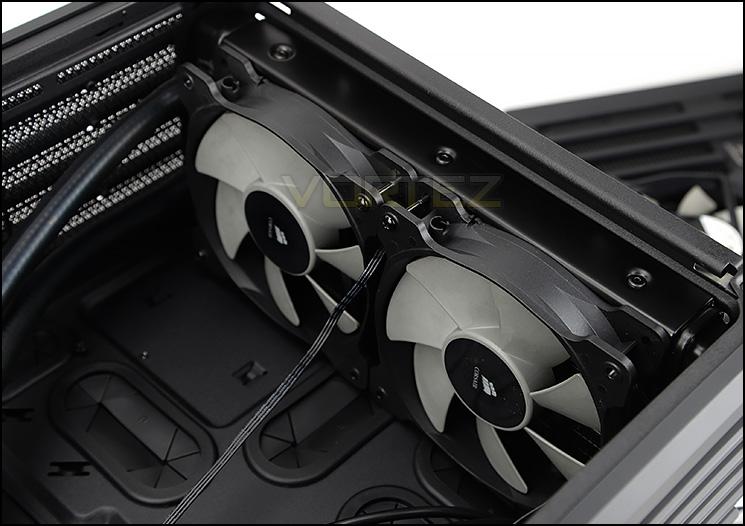

Clearance at the front also
