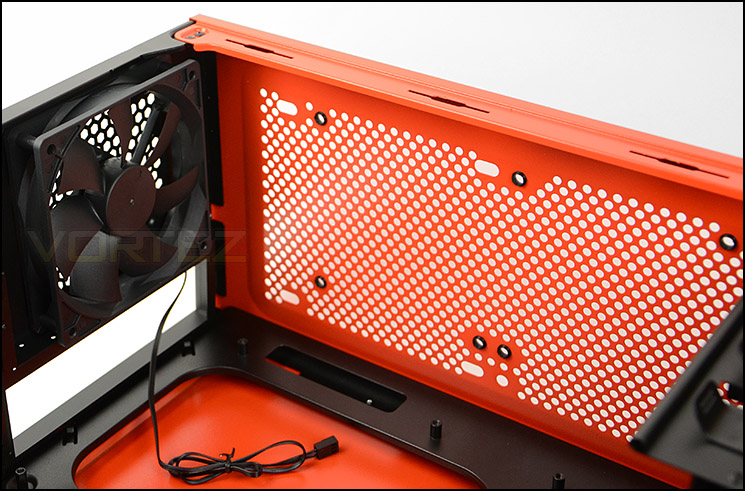

At the back of 230T, Corsair have included a 120mm rear exhaust cooling fan which uses a 3-pin connector. There are also optional slots at the top of the case for mounting dual 120/140mm cooling fans.
120mm rear exhaust fan and additional slots at top for cooling

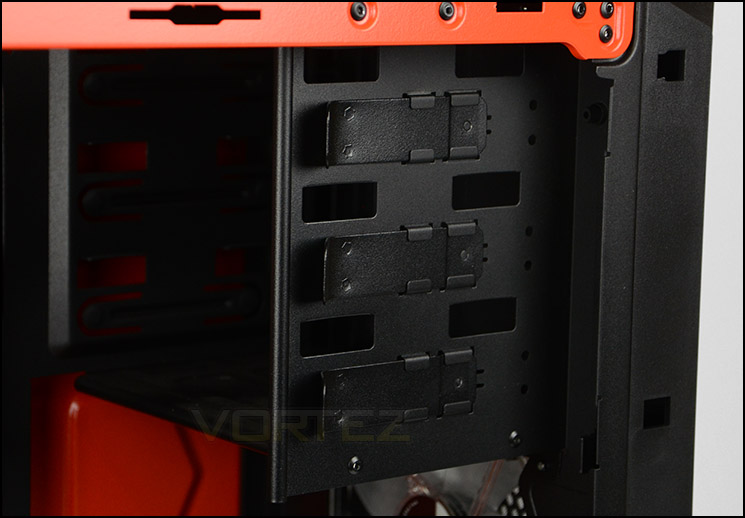

Across the case on the other side, there are 3x 5.25” drive bays. Each of these bays has a tool-free design mechanism for attaching devices – the latch system is easy to use and results in a hassle free option for getting kit in and out of the case.
Tool-free mechanisms for optical drive bay

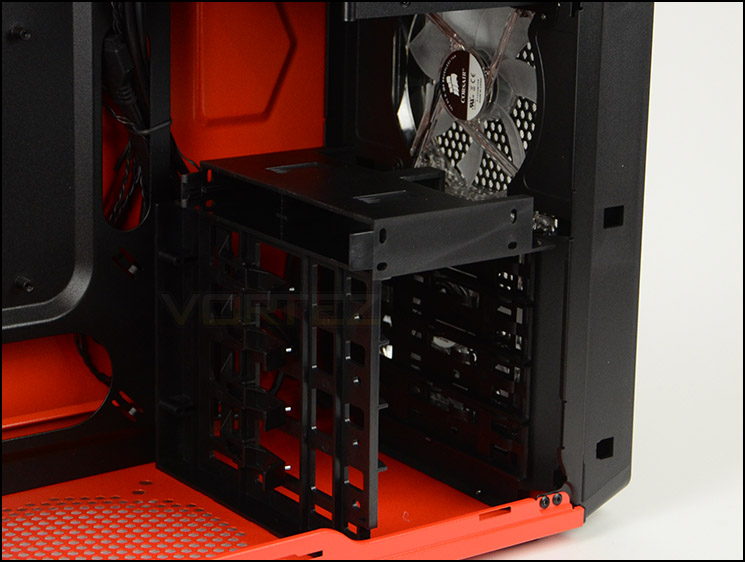

Meanwhile, at the bottom of 230T, at the front, Corsair have included another tool-free design. The HDD cage can accommodate up to 4x 3.5” drives and has a plastic adapter on the roof to house up to 4x 2.5” drives. Both drive types just slide in with ease.
By integrating these storage options within 230T, Corsair have taken up very little space, meaning there is better clearance for other hardware and less airflow disturbance for the front cooling fans.
Corsair have included dual 120mm cooling fans at the front and positioned them to be intakes. These fans are LED ready and for the orange variant of 230T – emit an orange glow when powered up.
Storage options for 2.5” and 3.5” drives
