The pump housing features a large Corsair logo in the centre, through with RGB effects can be customised, there’s also a couple of rings around the pump which will glow, though only one colour can be specified for all areas.
From the CPU pump itself comes the SATA power connector, to provide enough juice for those three fans, the RGB lighting and the water pump. There’s also a 3-way fan header to control the speed of the ML 120 fans as well as a motherboard header to allow the BIOS to monitor pump speed.
The left-hand side of the pump houses a micro-USB connection; this allows the Corsair Link software to communicate with the pump and fans for profiles and RGB customisation.

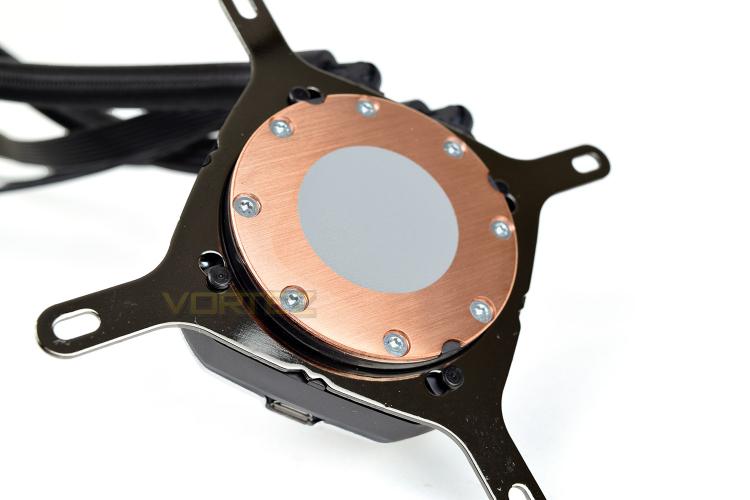

The base of the heatsink is a large piece of machined copper with thermal paste pre-applied; this is especially handy for taking out any guess work in regards to the amount of paste to apply, this thin layer will give optimum results.

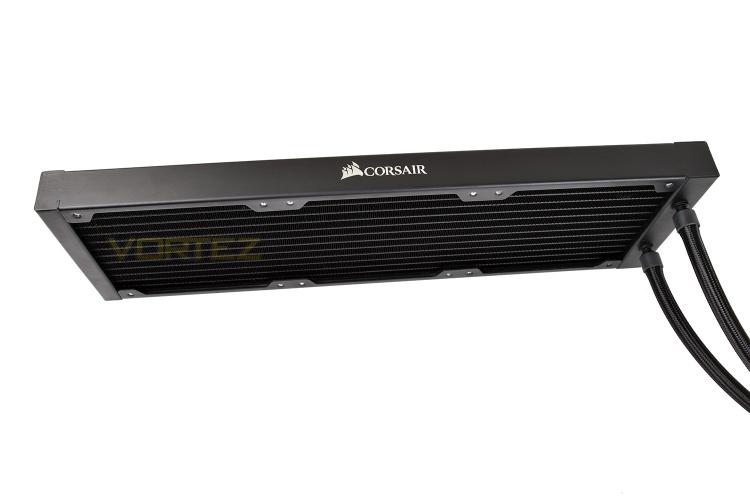

The H150i Pro is a 360mm radiator with room for up to 6 fans, though only three are included. The radiator measures 396mm x 120mm x 27mm (52mm with fans installed). An all-aluminium construction keeps the overall weight down. In the way of styling, all we see is the Corsair logo printed on both long edges.

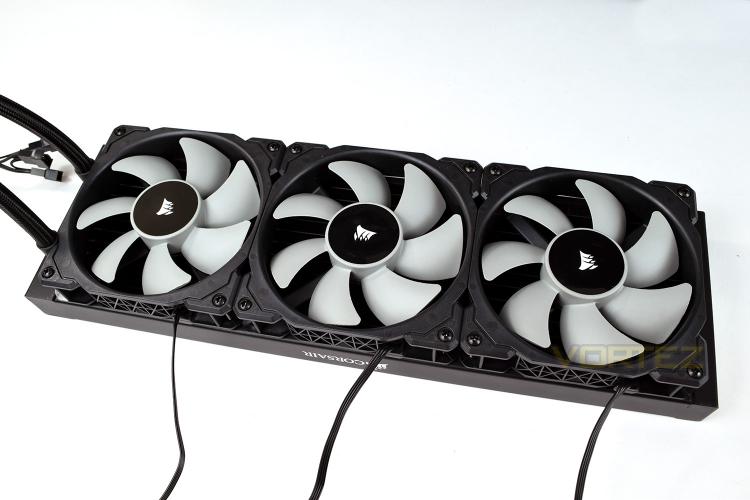

Once the fans are installed, the overall height is 52mm which may pose some trouble for slightly smaller cases. However the fans can be mounted one side of the case with the radiator the other.
From the CPU pump itself comes the SATA power connector, to provide enough juice for those three fans, the RGB lighting and the water pump. There’s also a 3-way fan header to control the speed of the ML 120 fans as well as a motherboard header to allow the BIOS to monitor pump speed.
The left-hand side of the pump houses a micro-USB connection; this allows the Corsair Link software to communicate with the pump and fans for profiles and RGB customisation.
The base of the heatsink is a large piece of machined copper with thermal paste pre-applied; this is especially handy for taking out any guess work in regards to the amount of paste to apply, this thin layer will give optimum results.
The H150i Pro is a 360mm radiator with room for up to 6 fans, though only three are included. The radiator measures 396mm x 120mm x 27mm (52mm with fans installed). An all-aluminium construction keeps the overall weight down. In the way of styling, all we see is the Corsair logo printed on both long edges.
Once the fans are installed, the overall height is 52mm which may pose some trouble for slightly smaller cases. However the fans can be mounted one side of the case with the radiator the other.
