Corsair TX750M PSU Review

👤by Richard Weatherstone Comments 📅15-12-11

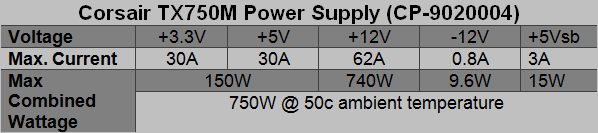

Specification & Features

Warranty: Five years

Dimensions: 150mm(W) x 86mm(H) x 160mm(L)

Power: 750 Watts

80 Plus: Bronze

ATX Connector: 1

EPS Connector: 1

PCI-E Connector: 4

4 Pin Peripheral Connector: 8

SATA Connector: 8

Floppy Connector: 2

MTBF: 100,000 hours

Enthusiast Series Modular TX750M Specifications

- A dedicated single +12V rail offers simple configuration and maximum compatibility with the latest graphics cards and other components

- An ultra-quiet, 140mm double ball-bearing fan delivers excellent airflow with exceptionally low noise levels by varying fan speed in response to temperature

- Complies with the European Union ErP Directive (2009/125/EC) so the power consumption of the whole system, in either standby or off mode, can be less than 1W when used with a properly configured, ErP-compliant motherboard
80 PLUS Bronze certified, delivering up to 85% energy efficiency under real-world load conditions

- Active Power Factor Correction (PFC) with PF value of 0.99

- Universal AC input from 90~264V

- Over-voltage, under-voltage, over-current, and short circuit protection provide maximum safety for your critical system components

- High-quality capacitors provide uncompromised performance and reliability

- A five year warranty and lifetime access to Corsair's legendary technical support and customer service
Safety Approvals: cTUVus, CE, CB, FCC Class B, TÜV, CCC, C-tick
