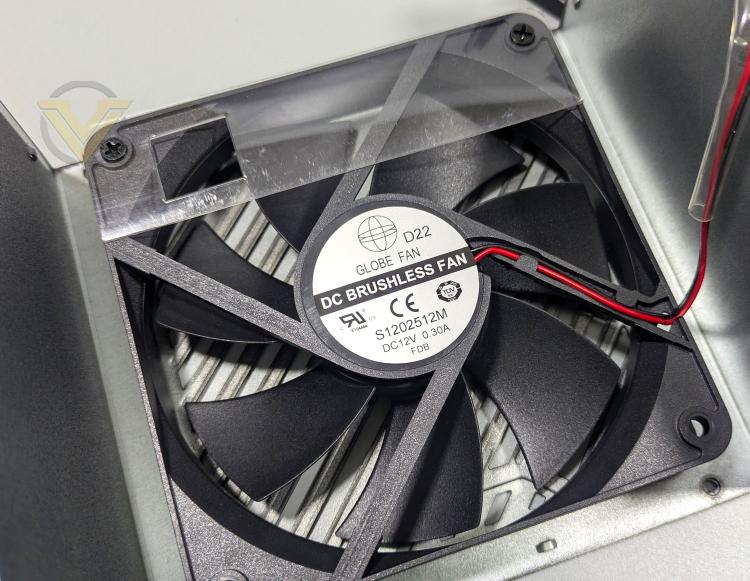

The REVOLUTION III 850W is cooled by a 120mm FBD (Fluid Dynamic Bearing) fan model S1202512M, with a 12V/0.3A output.

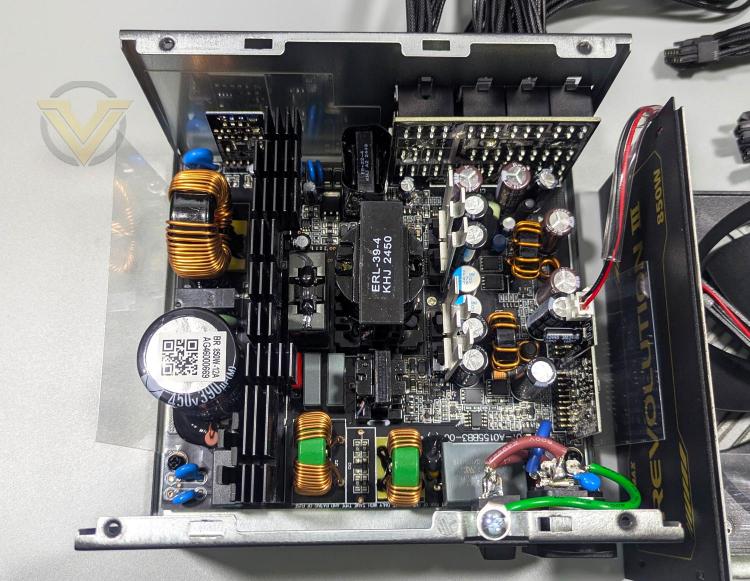

The ENERMAX REVOLUTION III 850W power supply features 100% Japanese industrial-grade capacitors, underscoring its focus on durability and premium quality. All capacitors, from the primary to the secondary stages, are mostly sourced from Rubycon and some from Nippon Chemi-con, two of Japan’s most respected capacitor manufacturers and are known as first-tier capacitor brands, ensuring exceptional reliability and long-term performance. The PSU is also equipped with heatsinks to assist in heat dissipation.

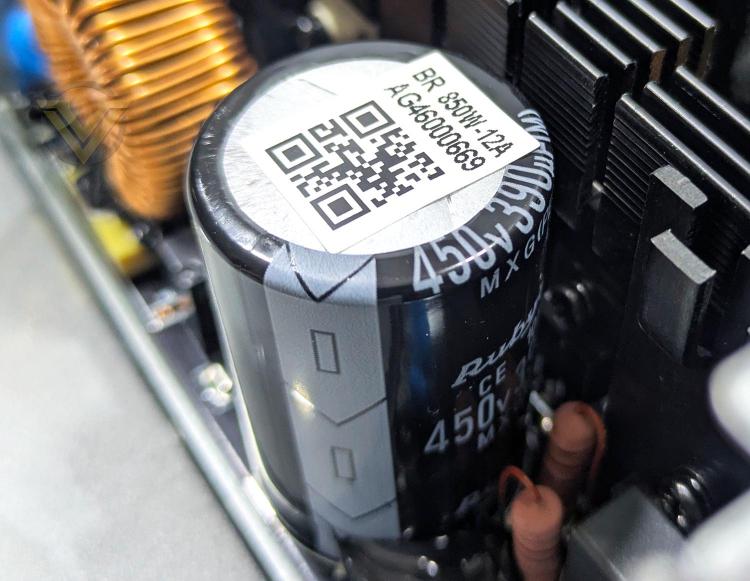

The PSU’s primary capacitor is a single Rubycon 450V 390uF 105°C MXK Series aluminium electrolytic capacitor.

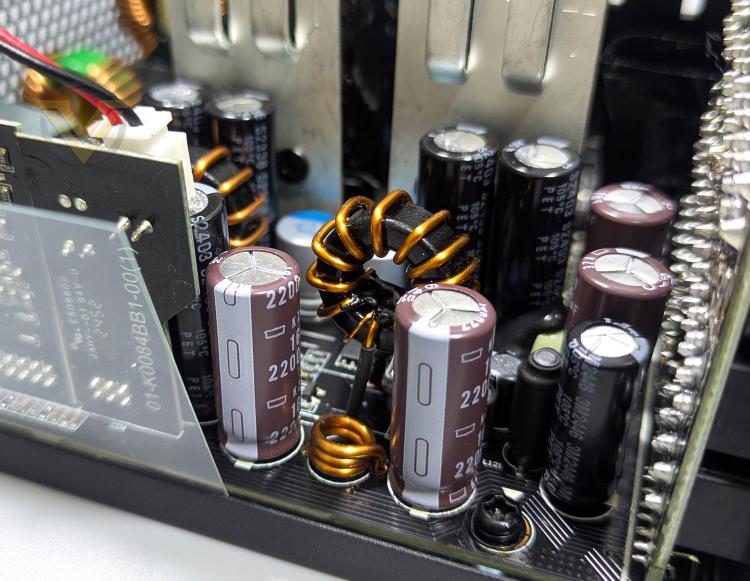

The secondary capacitors of the PSU are also Rubycon capacitors, those in black, and some Nippon Chemi-con, which are those in brown. This confirms the REVOLUTION III PSU's 100% Japanese capacitor construction.
