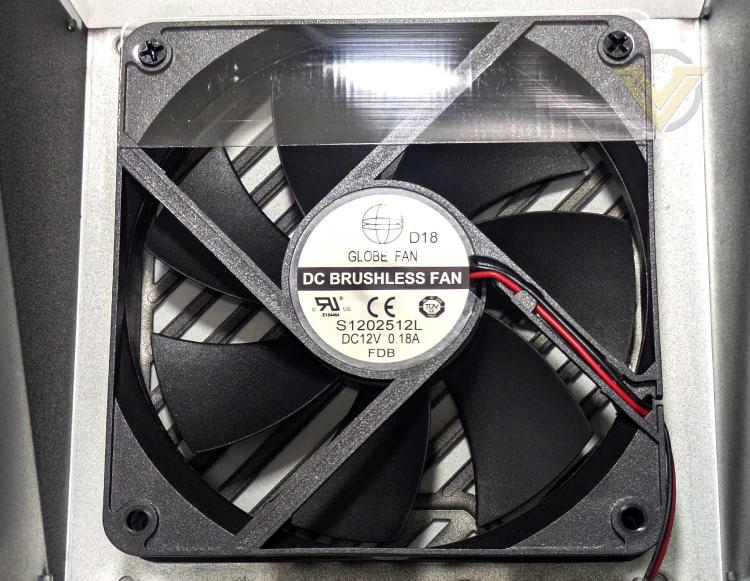

ENERMAX sources its cooling fans for the REVOLUTION III S from Globe Fan, same with the REVOLUTION III.


The REVOLUTION III S uses the S1202512L model that’s only rated up to 2,000 RPM with a maximum airflow of 90.92 CFM in favour of lower noise level. The REVOLUTION III came equipped with the S1202512M rated up to 2,400 RPM that delivers higher maximum airflow but louder noise levels.

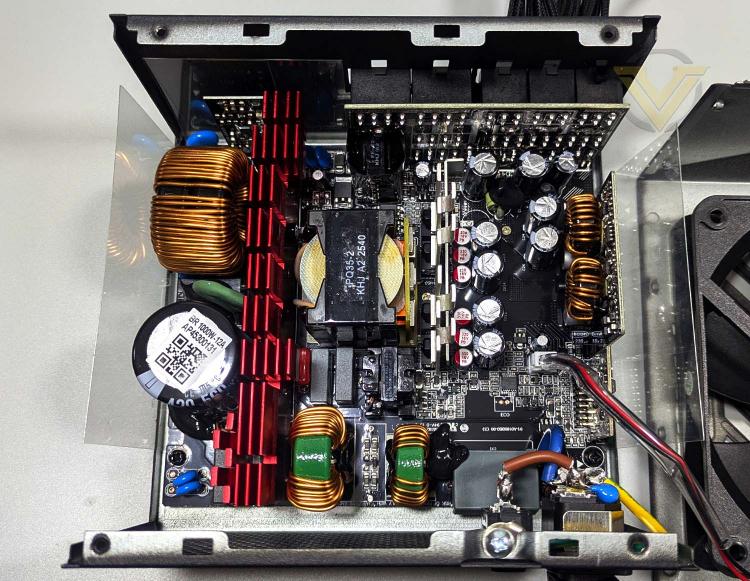

This PSU has a similar layout with the REVOLUTION III but uses different components. Noticeably, both uses a large heatsink for heat dissipation and the REVOLUTION III S uses a large red anodized aluminium heatsink.

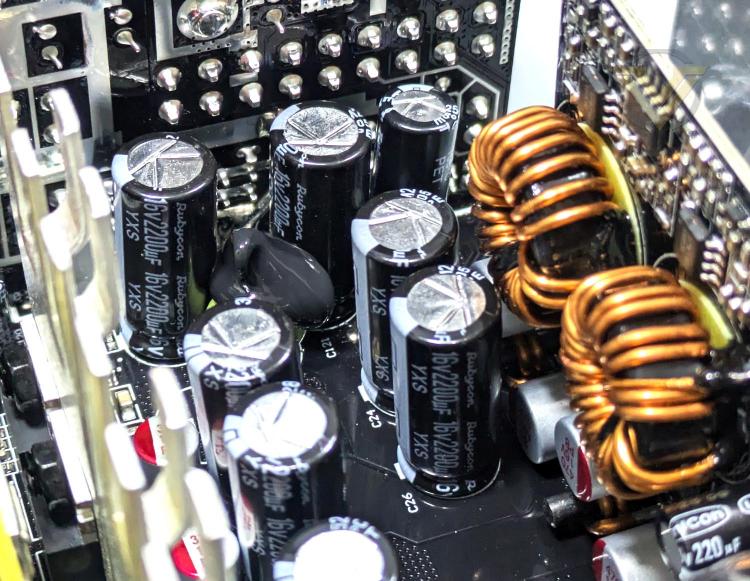

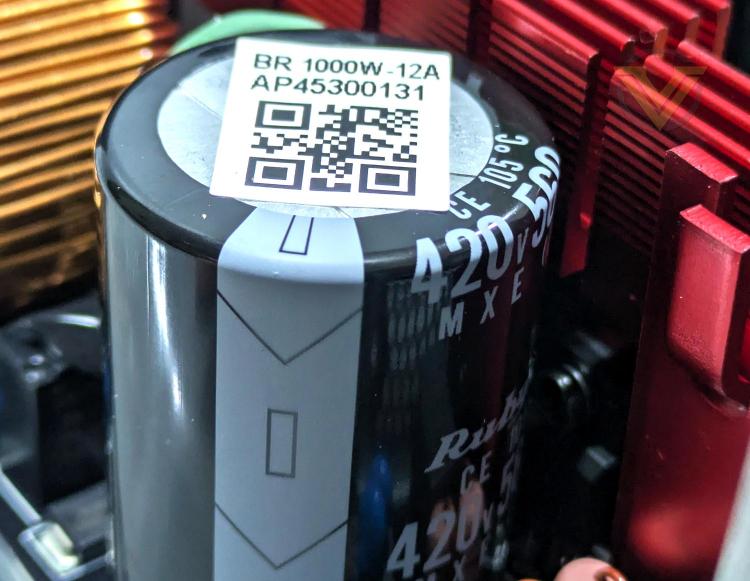

The REVOLUTION III S 1000W utilises a single Japanese-made 105°C primary capacitor, specifically a Rubycon 420V 560µF MXE-series aluminium electrolytic capacitor. On the secondary side, ENERMAX continues with Rubycon components throughout, reinforcing the brand’s claim of using 100% Japanese capacitors across the entire power supply design.
