FSP AURUM CM 650M Review

👤by David Mitchelson Comments 📅06-01-12
Exterior

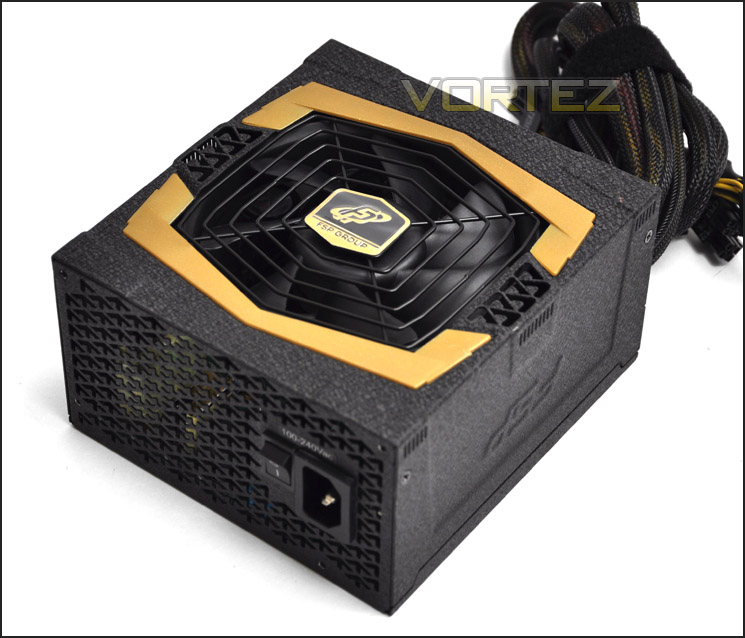

As with the packaging the unit itself has gold elements to it also. The outer shell has a premium feel and look to it with the surface being rough. Aesthetically the AURUM CM SERIES is up there with the best.

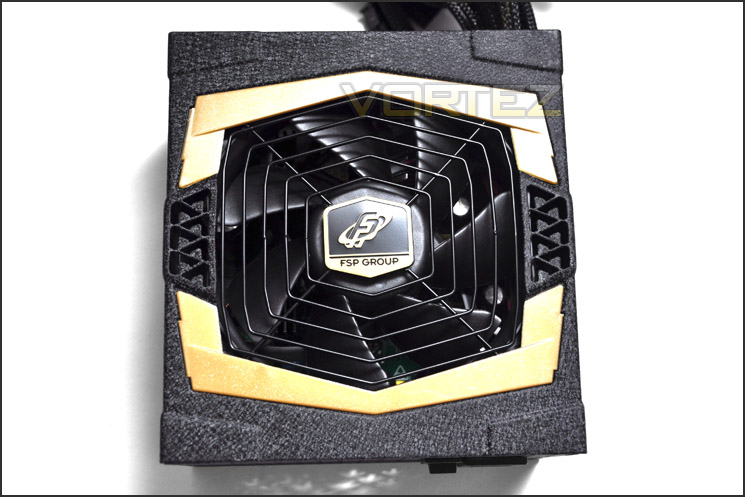

Our PSU under the spotlight today has a fan grill with a 120mm PWM cooling fan underneath. In the next section we will delve inside the unit and discover what brand/model this fan actually is.


Aesthetically pleasing exterior



120mm PWM fan and grill

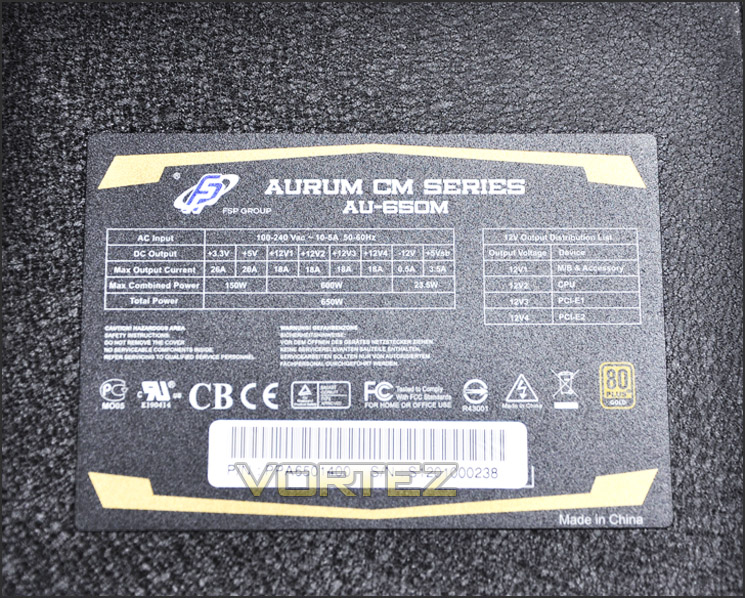

Flipping the PSU over, as is typical with all PSUs the AURUM CM SERIES has a specifications label showing total output and ampage for rails. There are 4x +12v rails inside this PSU each with 18A giving a total of 600W for dedicated graphics.


Specifications label detailing watts and ampage

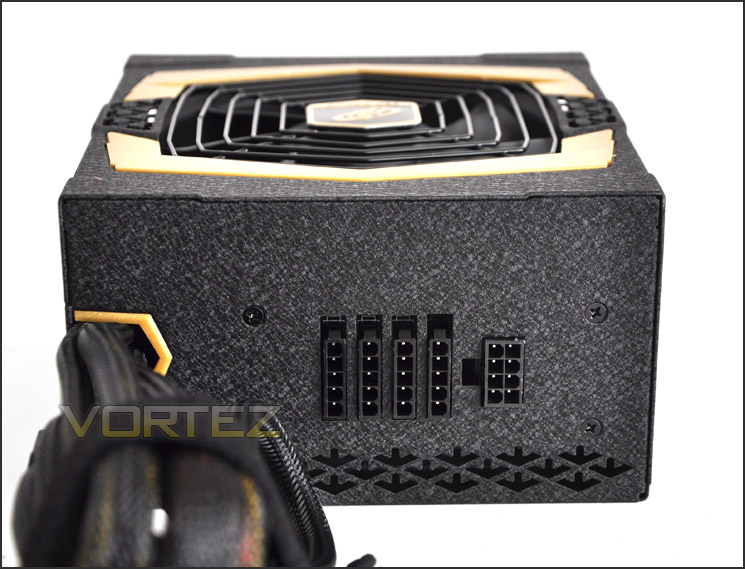

Due to the AURUM CM SERIES being modular we have various slots for cable connectivity. There is a slot for PCI-E and 4x slots for SATA/Molex.


Modular slots for attaching cables

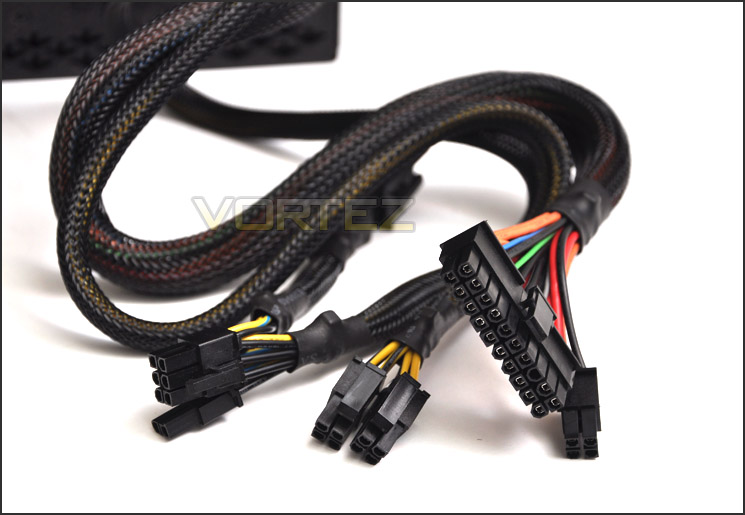

Our PSU has some cables hard-wired into the unit such as 24-pin ATX and CPU power (EPS/E-ATX) which are mandatory and there is also a PCI-E cable with 2x connectors – both are 8-pin. These cables unlike the modular cables are braided with black netting.


Hard-wired cables in the form of 24-pin ATX, CPU power and PCI-E


In the next section over the page we will open the unit up for a closer inspection.
