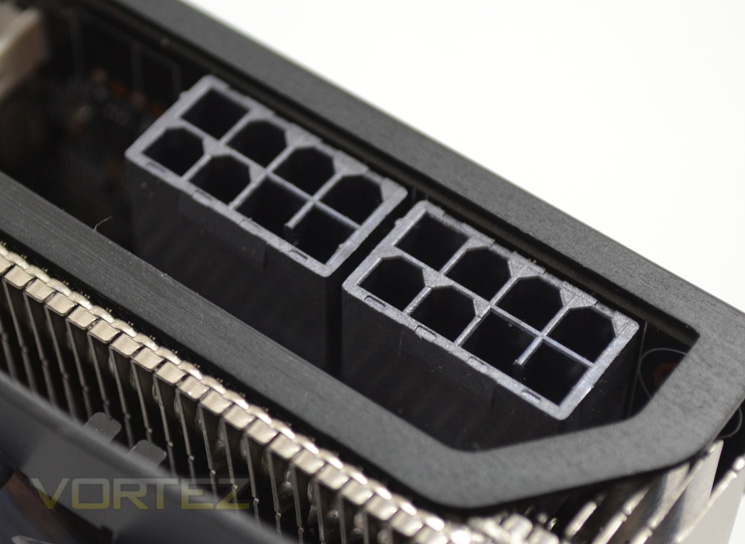

The power requirements of the card are 600W PSU capable of delivering 42A on the 12v line. This power is transferred to the GPU through twin 8-pin PCIe power ports. If you don't have this many 8pin cable available fear not because GIGABYTE have thoughtfully included a couple of Molex adaptors.

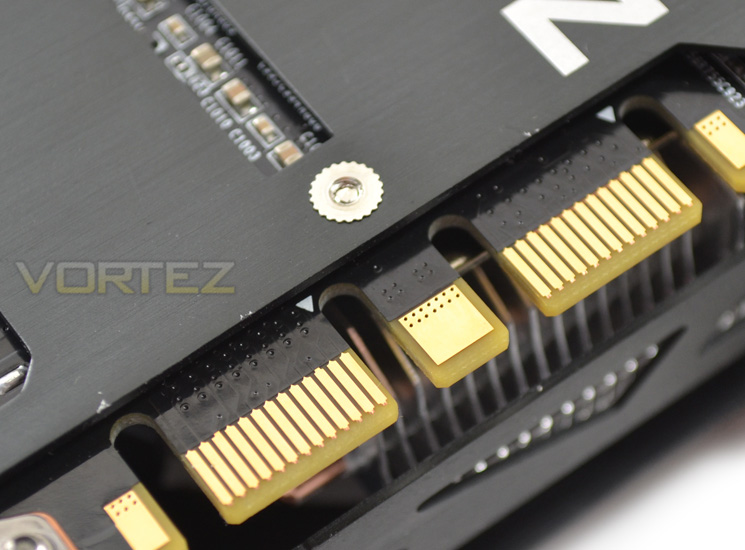

Fancy hooking this up to another GTX780? No problem. More than one 780? Still no problem thanks to the twin SLI tabs which will allow multiple cards to be linked together from the same family.


We couldn't resist taking another shot of that backplate. The finishing is perfect and rounded off nicely with the silver screw inserts. Be warned though that this backplate cannot be removed without first removing the cooler as the backplate is attached via the inside of the PCB.

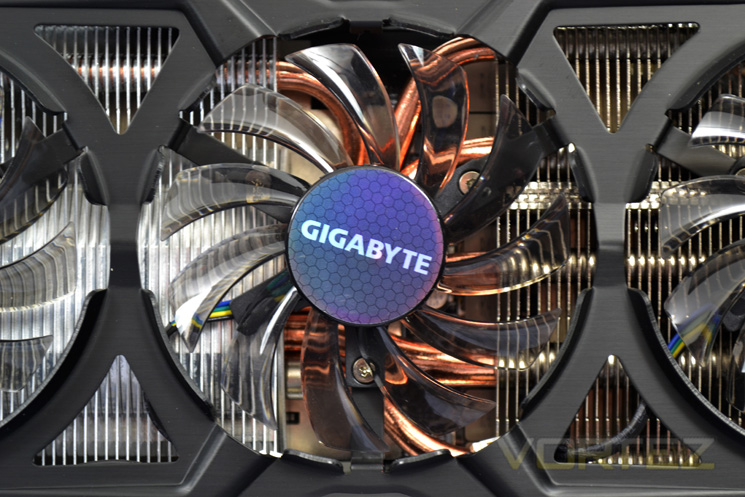

Dissipating heat from that huge heatsink are 3 ultra quiet, smoked/translucent PWM fans which we believe to be some of the quietest in the business.


Overall, the GIGABYTE GTX 780 GHz Edition looks very similar to the standard OC Windforce designs. The GHz edition does however have some improvements which make the best, that much better. There can be no denying this is one of the best looking graphics cards currently available which will match most PC custom builds around.

Let's have a closer look shall we?
