At the tail-end of last year (2011) GIGABYTE displayed their new 3D BIOS. GIGABYTE were late to the UEFI party this 3D BIOS hopes to satisfy GIGABYTE fans who thought they were missing out.

For those who want to see a working version of this BIOS, check out GIGABYTE’s video tour of 3D BIOS below:

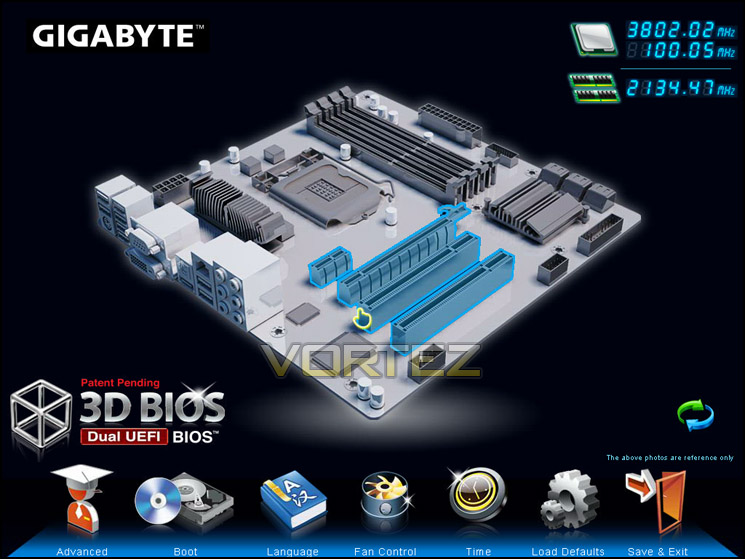

GIGABYTE 3D BIOS have two different modes which you can switch between. The first mode is below with an illustration of the BIOS which requires you to move your mouse over various parts to get more info and tweak settings.

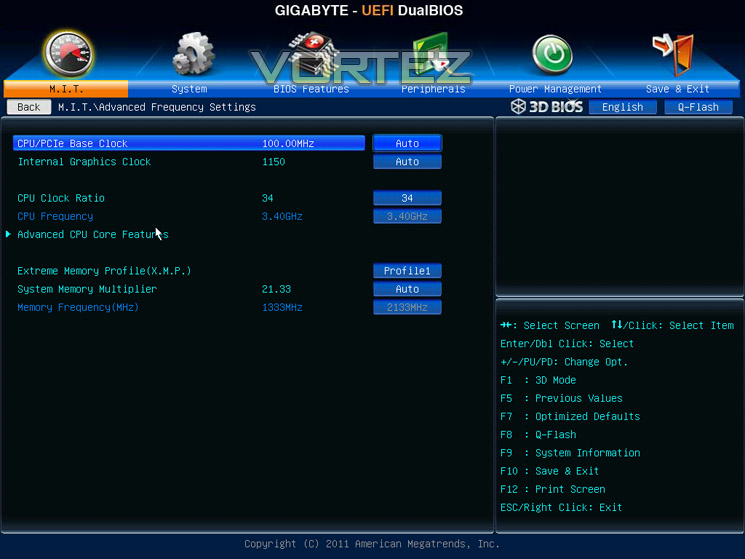

The second mode is what most will be familiar with. In this mode you can alter various settings and there is a great BIOS update tool for flashing to the latest version as well as a feature that allows you to screenshot (these images were taken using this feature) to a USB stick.



I’ll be honest with you, after using other vendor’s BIOS and then coming to 3D BIOS I was a little underwhelmed. The illustration of the motherboard in the first mode feels like a gimmick. Moving into the second mode the navigation has been improved I am pleased to report. This is the 3rd Z77 motherboard I have reviewed and navigation on those previous motherboards was certainly different.
