HIS R9 280X IceQ x2 Turbo Review

👤by Richard Weatherstone Comments 📅22-12-13
A simple re-brand?

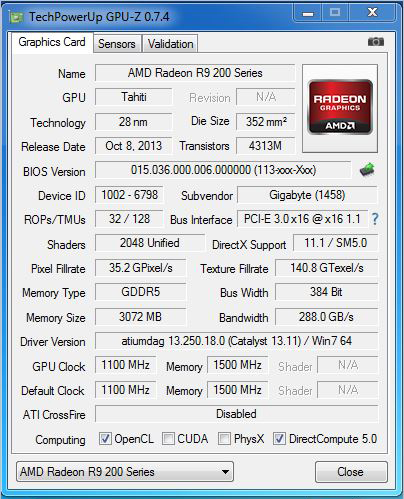

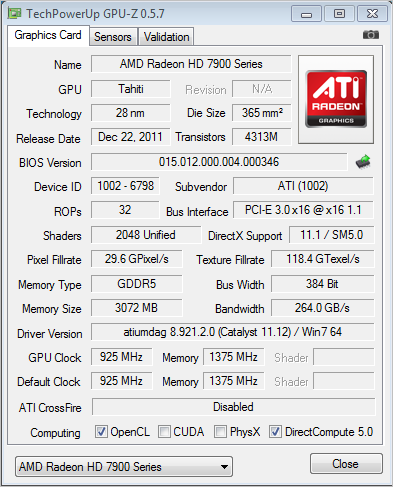

Above is a side by side comparison of the GPU-Z readouts from both the R9 280X (top most) and HD7970 (bottom). Aside from the clockspeeds and resulting texture results, the physical specifications are identical. Both cards use the Tahiti core, have the same amount of memory and bus width meaning for all intents and purposes, both cards attributes are identical. So are AMD simply re-branding the HD7970 and passing it off as a 'new ' graphics card. Well yes and no.

The R9 280X features the same core, and with it the same features of the HD7970. This is no bad thing of course because the HD7970 was, and still is a fantastic high end graphics card capable of most situations you care to throw at it. With 3GB of GDDR5 it wants for pretty much nothing but add an increase in both clockspeed and memory speed as standard and what we now have is a flagship card that should still be capable of mixing it with NVIDIAs second tier of gaming cards. Yes, we would all prefer new technology but that will come with the R9 290X. What AMD have done with the R9 280X is nothing new, indeed NVIDIA use similar tactics when using up excess silicon. What is key is the price.

It is almost 2 years since we reviewed the HD7970 and upon release it was a circa 500 graphics card. We expect the R9 280X cards to enter the market at around 240, less than half the price of a once flagship product. This strategically places the card above the GTX760 price yet below the GTX770 (at the time of writing). Not a bad move at all considering the performance of the HD7970 that this card is expected to exceed. So what is so good about the Tahiti core?

The Tahiti core which is the successor to the Caymen core of the HD6900 family. The Caymen core was based on a 40nm manufacturing process so it is fair to say that perhaps the biggest improvement to the Tahiti core is the reduction to 28nm process. This has enabled AMD to cram 4.31 billion (4,312,711,873) transistors into the Tahiti core as opposed to the 2.64 billion on the HD6970 Caymen XT.

Comprising of what AMD calls 'Graphics Core Next (GCN)' architecture which is optimised for heterogeneous computing, the new Tahiti core has upto 32 CU's (compute units) with dual geometry engines along with 8 back-ends comprising of 32 colour ROPs per clock and 128 Z/Stencil ROPs per clock. Each CU has a Vector unit and Scaler Co-Processor and can execute instructions from multiple kernels.

The VLIW4 SIMD has evolved to the GCN quad SIMD which equates to similar computational power yet grants better performance, threading and simplification. The GCN also has a new Cache hierarchy with 16KB instruction Cache and32KB Scaler Cache shared between 4 CU's. The L2 Cache is accessible by each CU with it's own separate process to ensure coherency. These changes increase the GFLOPs by 140%.

Tesselation on the Tahiti core is also enhanced by increased Vertex re-use off-core which theoretically at least, means the R9 280X has 4 times the throughput of the 69XX series. The are improved ansioscopic filtering algorithms too which come at no performance cost allegedly. These new algorithm improvement will allow the use of Forward Rendering with 1000's of potential light sources and will also mean MSAA can be rendered easily.

Looking at the schematics above, we can identify the bulk of the GPU is taken up with the 32 CU's. Above these are the geometry engines. To the left and right are the 8 Render back-ends, 4 each side. There's 768KB of L2 cache along with 6x64bit dual channel memory controllers making a 384-bit GDDR5 memory interface capable of delivering up to 264GB/sec. All of technology coupled together is transferred through a fully compatible PCI Express 3.0 x16 bus interface. Have no fear though because the cards are backwards compatible with PCIe 2.0.

HIS R9 280X IceQ x2 Turbo Specification

Model Name HIS R9 280X iPower IceQ X Turbo Boost Clock 3GB GDDR5 PCI-E DLDVI-I/HDMI/2xMini DP
Chipset AMD Radeon R9 280X
Memory Size 3072 MB
Memory Type GDDR5
Core Clock 1000 MHz (Boost Clock 1050 MHz)
Memory Clock 6000 Gbps
Memory Interface 384 bit
Power Supply Requirement 750Watt (or greater) power supply with two 150W 8-pin PCIe power connectors recommended
1000Watt (or greater) power supply with four 150W 8-pin PCIe power connectors
Max. Resolution(per Display)
DisplayPort 1.2 - 4096x2160
HDMI - 4096x2160
Dual-link DVI with HDCP - 2560x1600
Interface PCI Express 3.0 x16
Outputs DLDVI-I + HDMI + 2xMini DP
