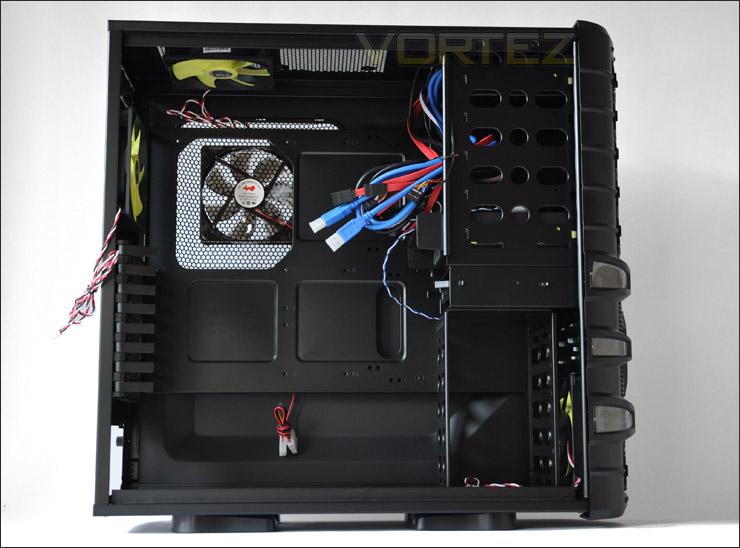

Removing the prominent side panel via 2 thumbscrews we get our first glimpse of the inside of the Dragon Rider. This case is well laid out, and presents you with lots of options both in terms of cable management, space and tool-less mechanisms. You can see the cut-out for the CPU cooler backplate - which with the other side panel on, shows the 120mm fan that will blow cool air onto the back of the CPU socket and VRM. As I previously mentioned, I've not seen this idea implemented on a case before, and its a very intriguing decision.
Prominent side panel off. showing lots of room

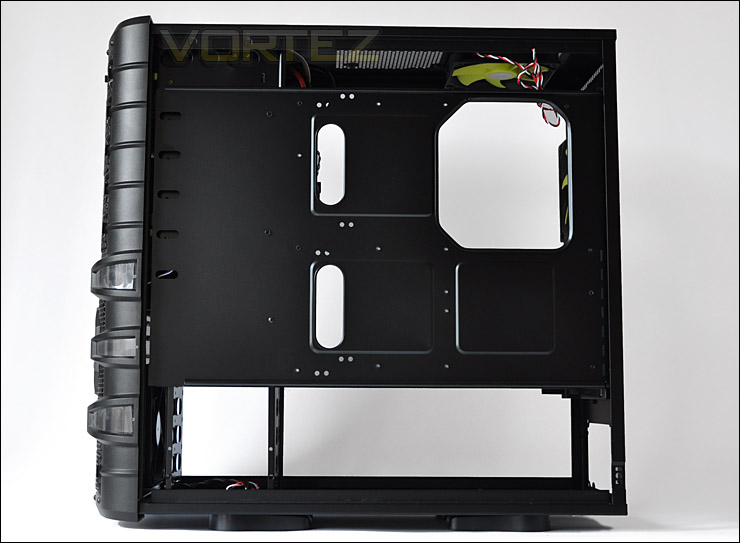

Alternate side panel off

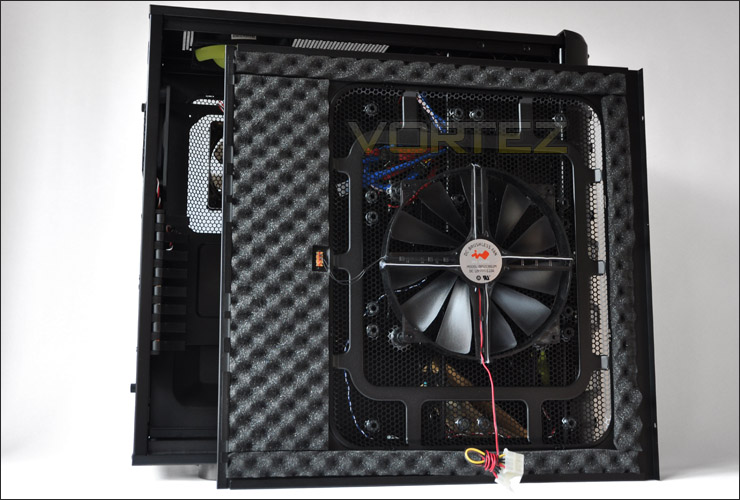

I thought it would be useful to show the inside of the side panel with the 220mm fan attached. The side panel actually has foam attached which In Win have used to aid noise damping, which is odd because there are lots of holes through out the case that do not do it any favours in this regard.
Inside of side panel, showing 220mm fan and foam padding

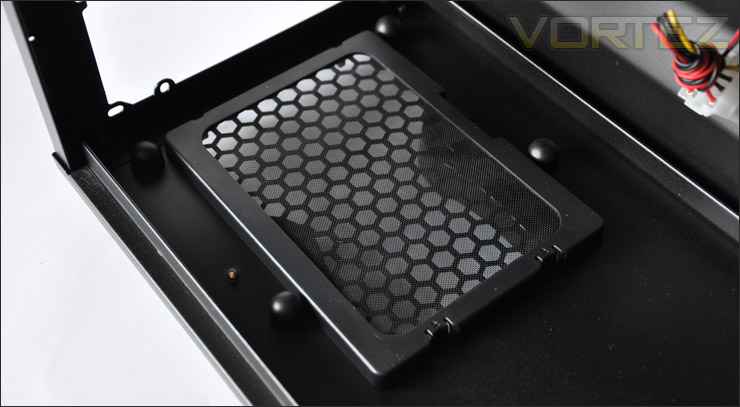

Inside, we have a PSU mounting area that features 4 soft rubber mounts for anti-vibration and scratch prevention. In the centre is a removable dust filter that can be cleaned/washed if required.
PSU mounting with dust filter

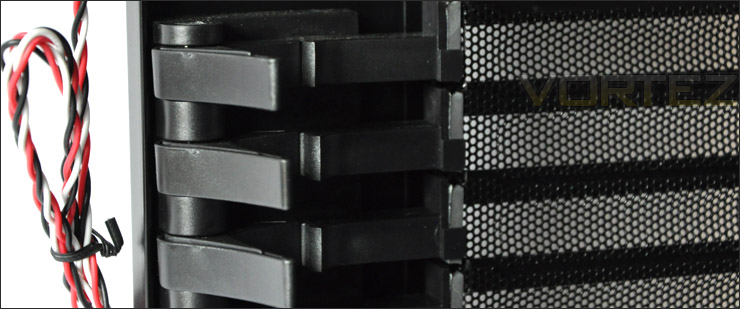

Above this we have each of the 8 expansion slots that come with integrated tool-less mechanisms. Its quite a simple design, and one that you may have seen on other cases too. All that needs to be done is a movement of the level to remove/install a card.
Expansion card quick release mechanism
