** Opening a PSU voids warranty and should be performed at your own risk **

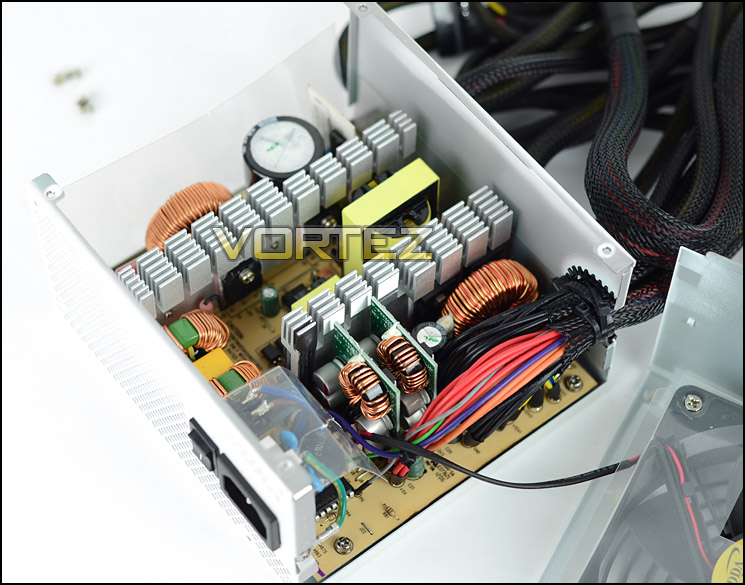

Removing the casing for GreenME 650W we get a glimpse of the inner-workings. There is a beige PCB and a dual heatsink design for cooling. Overall, a tidy design with good quality components used.
An overview of the inside of GreenME 650W

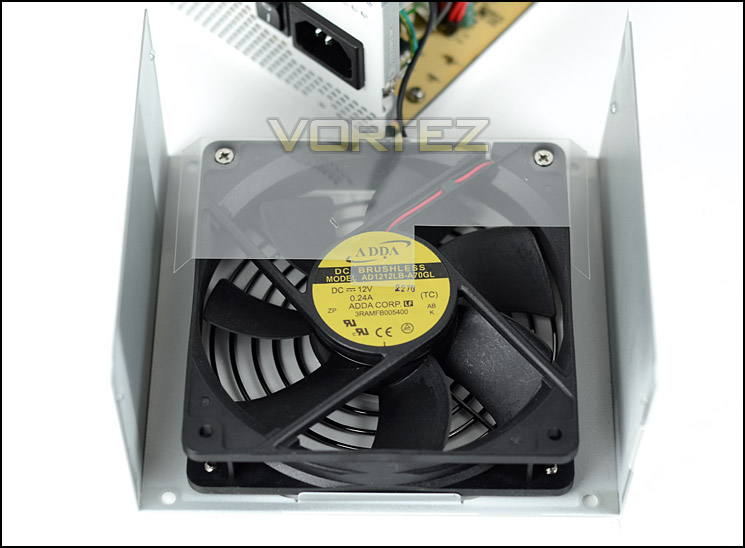

In Win have included a dual ball bearing 120mm cooling fan inside GreenME 650W. The brand is ADDA and the model is AD1212LB-A70GL. This fan is capable of 2500+ RPM.
120mm dual ball bearing ADDA branded fan

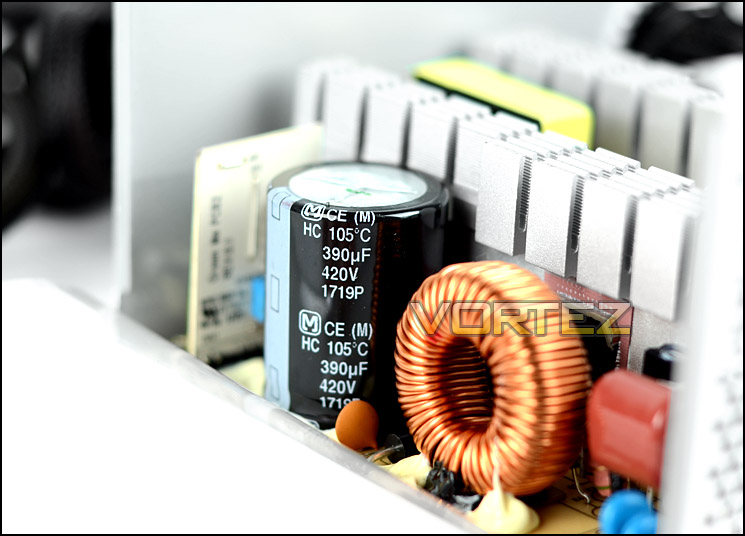

There is a single Japanese hold-up capacitor which is branded as Panasonic with the ratings 390uF/420V 105°C.
Panasonic 390uF/420V 105°C
