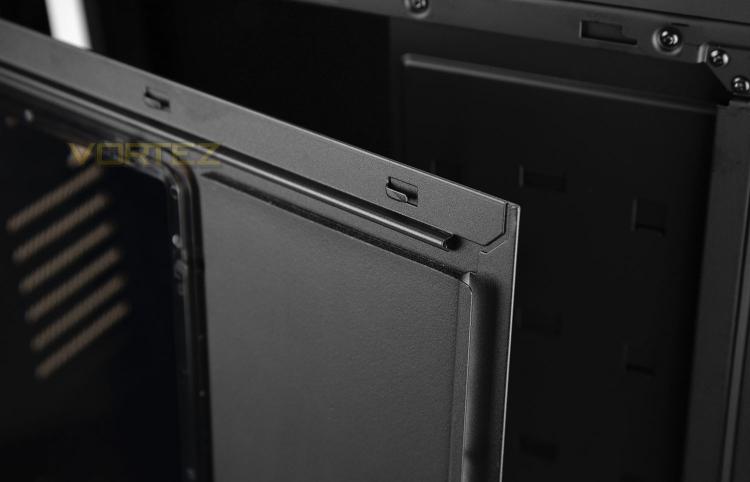

The side panels on H440 are secured via dual thumbscrews. After loosening these screws and detaching the panels we soon realise the inside features a thick layer of noise damping material too – this helps to keep any electronic, fan noise to a minimum.

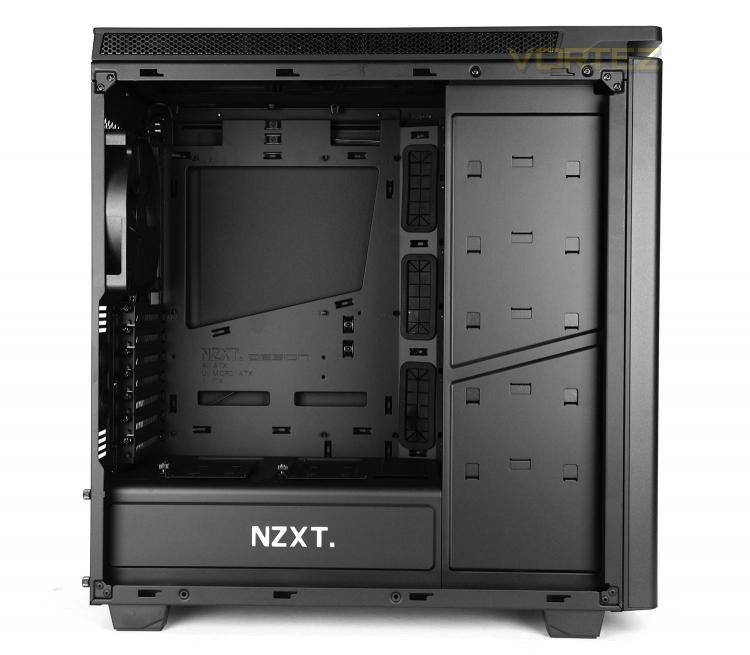

The biggest form factor H440 can accommodate is ATX. The inside is powder coated black and features a wide-selection of tool-free mechanisms for installing hardware as well as numerous cut-outs with rubber grommets to arrange cables.

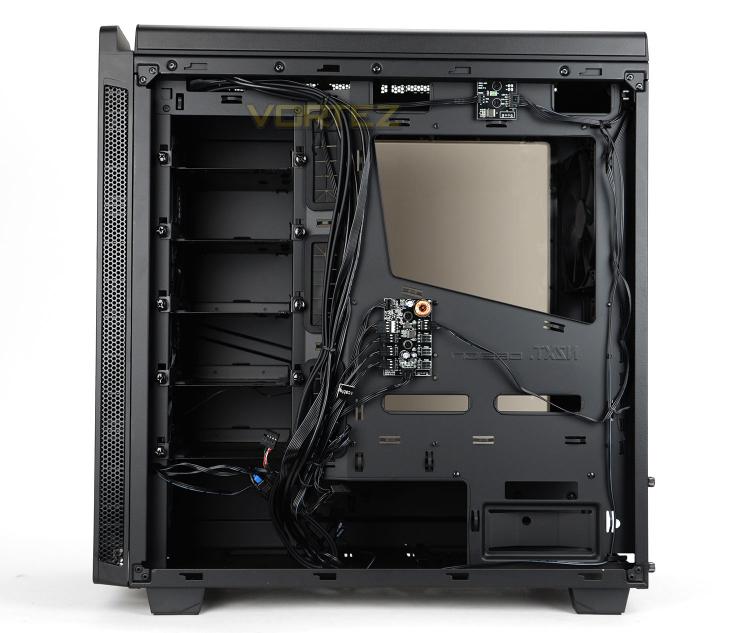

The original H440 lacked any PWM fan controller hub but this new edition has this integrated to the reverse of the motherboard tray. This fan controller allows all fans to sync a master pin header.

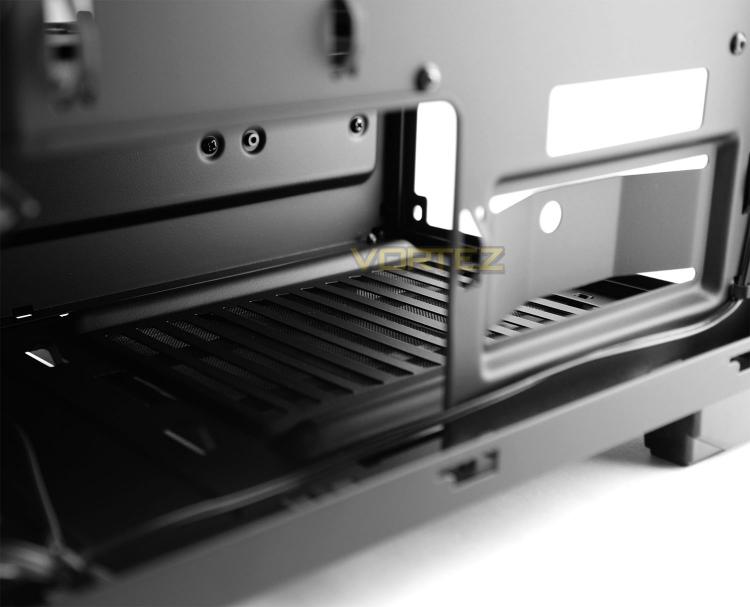

In the lower chamber there is allocation for mounting the PSU. This area while lacking any anti-vibration, does include a removable dust filter underneath.

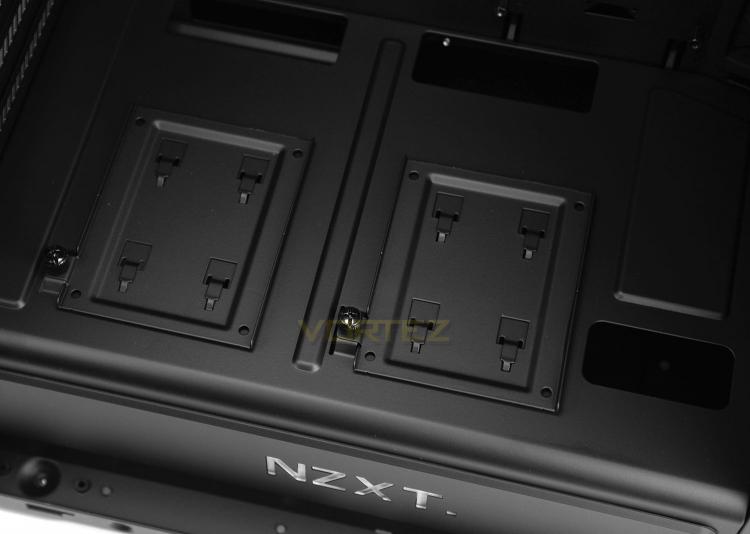

Above this chamber on the prominent side there are two trays which allow 2.5” devices to be attached. This is excellent use of space and as we’ll see later on, will come in handy if you decide to pair H440 up with a Hue+. These trays are fixed into place with brackets and a single thumbscrew.
