The amount of space inside a computer chassis is essential for system builders and therefore in this section we’ll be identifying all the clearance options for critical components.


CPU Cooler

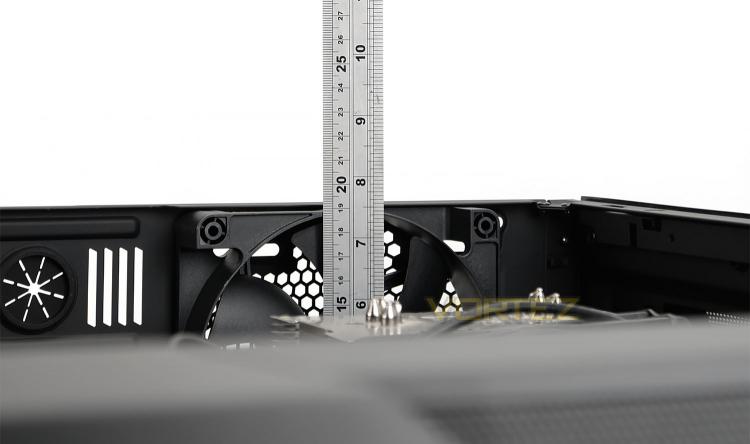

For the CPU cooler there is approximately 190mm of height for even the biggest flagship air coolers to fit inside Noctis 450. This is a large amount of space – unseen with many other rival options out there.


Graphics Card

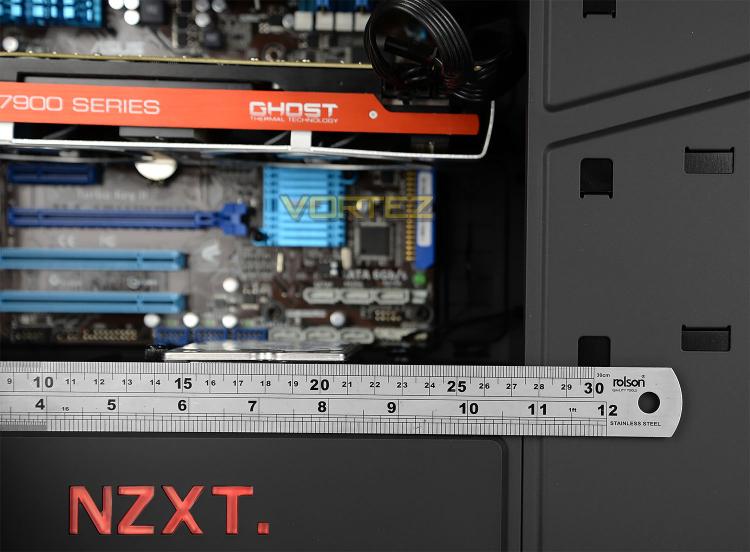

Due to the modular HDD section on Noctis 450, the biggest graphics cards can be housed inside the case without any hiccups but with all the trays attached there is just over 10.5” (260mm) – dual card configurations are of course fully supported also.

Water cooling

Noctis 450 has both the space and allocation slots for installing different sized radiators. At the top we can house 240/280mm radiators and at the front we can also install the same specification of radiators. Pictures will be added soon.


Cable Management

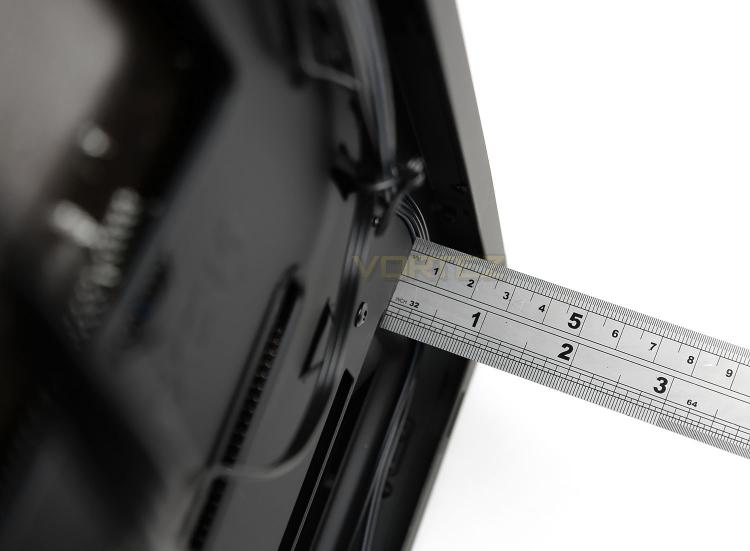

Behind the motherboard tray there are different areas we can measure for the clearance between the tray and the side panel but in the area directly next to the PSU there is around 1.5cm which is a reasonable amount of space. The added bonus with Noctis 450 is that all of the cables can be stored inside the PSU chamber – some of which can avoid trailing across the back.
