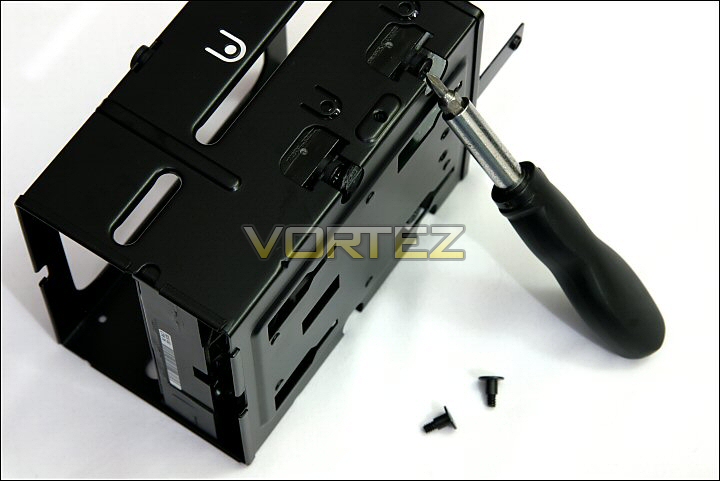

Working in reverse I started with the HDD cage. The supplied screws fit snugly and provide a secure anchor for the drive.
Installing the HDD.

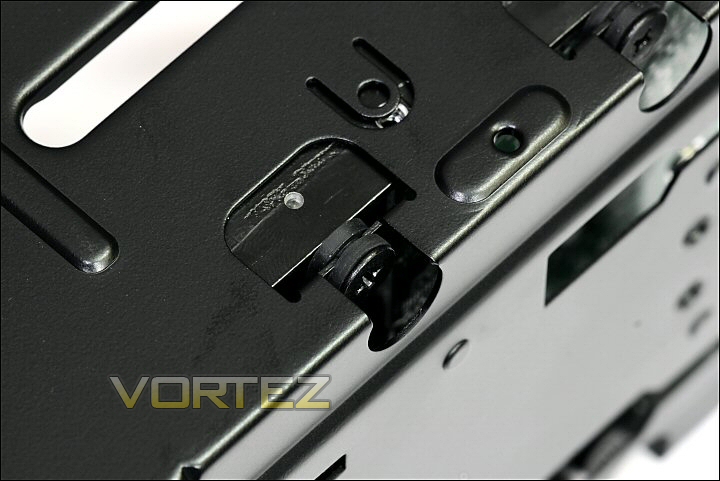

Here you can see the rubber mount in place - it's a tidy solution and certainly very easy to work with.
The rubber HDD mounts.

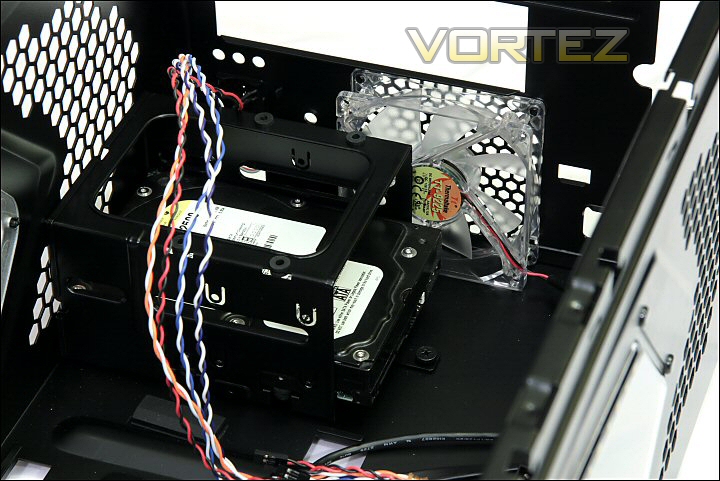

It can then be slid into place on the floor of the case. A single screw secures it in place and as you can see cool air should be readily supplied by the 92mm case fan.
Installed into the case.

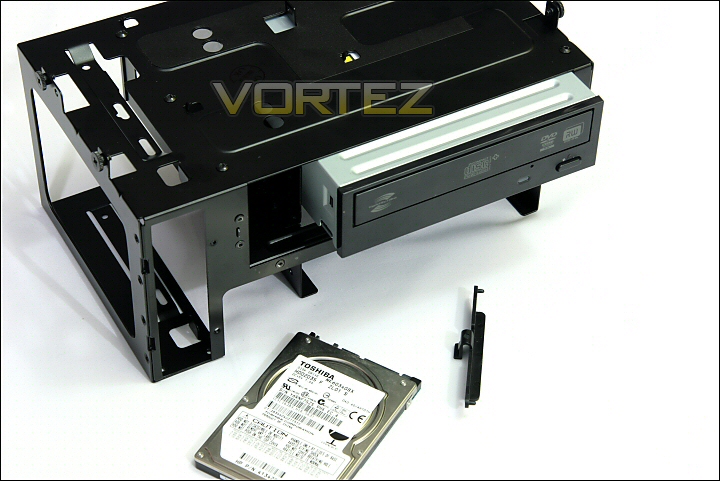

For the upper optical drive cage install of the DVD drive is a standard screw affair. The Laptop drive is slightly different and involves a plate that sits along one side of the drive.
Optical drive cage.
The other side of the drive then docks into two tabs and the whole arrangement snaps into place. Very quick, tidy and secure.

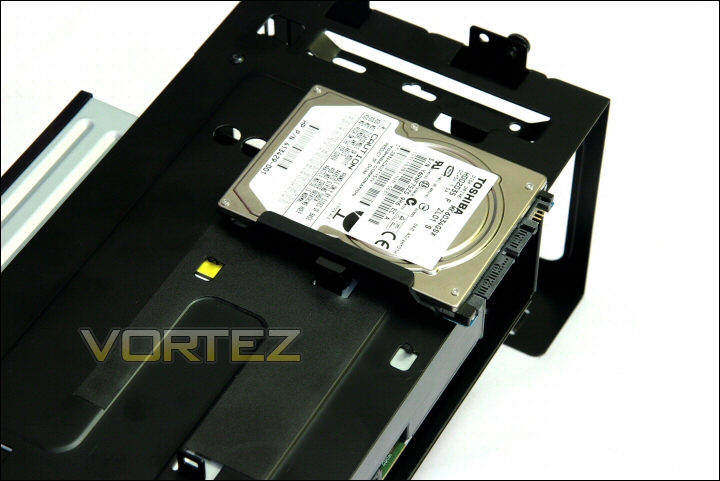

2.5" drive in place.

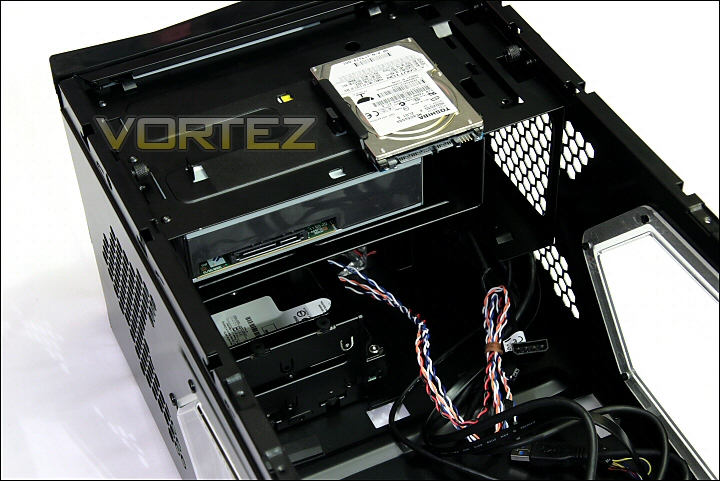

Installed into the case the space has already been used quite effectively.
Cage is in.

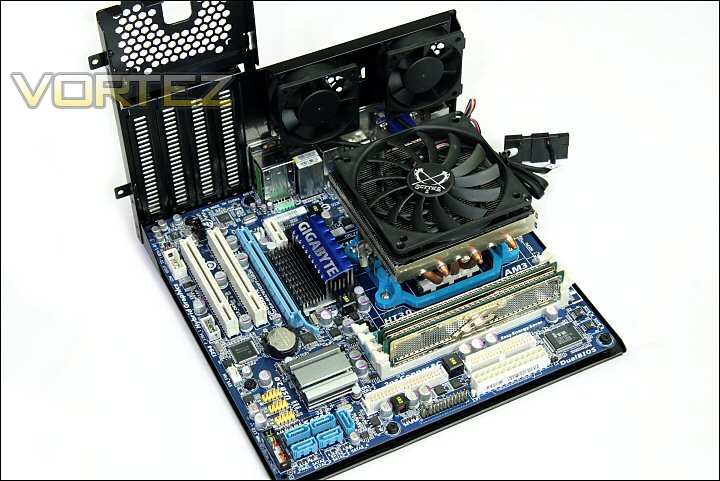

Motherboard installation was a breeze thanks to the removable tray. The board could be installed quickly and the components installed into just as fast. I did initially install the GTX260 graphics card as well but ran into a problem.
Motherboard install.
