Being an all-in-one, closed loop CPU cooler the Water 2.0 Pro has a pump and radiator. The radiator is aluminium and measures 149.9x119.9x48.8 mm – ideal for installing into the space which occupies the rear exhaust in the typical computer chassis.
The tubes which connect the pump to the radiator are rubber and can be rotated approximately 70 degrees to allow for various orientations.

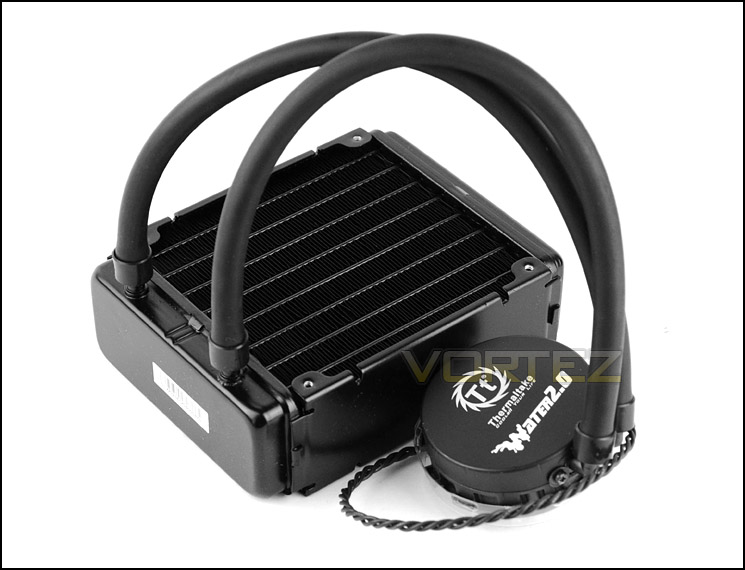

Radiator and pump[i/]
The pump has a plastic outer cover and an integrated copper water block. This water block is screwed to the unit and comes with a thin layer of pre-applied thermal paste. The pump requires a 4-poin connector in order to have its 12V motor operate and has branded as Asetek

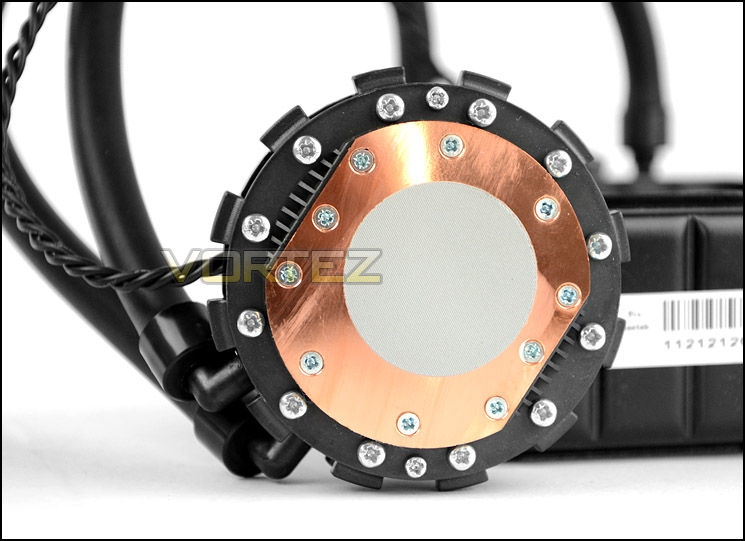

The underside of the pump with copper water block
