Initially i wanted to consider raw hardware performance and desktop capability.

I used Everest's trial version to check performance details. Below are the results from the system at stock speeds and in overclocked form:

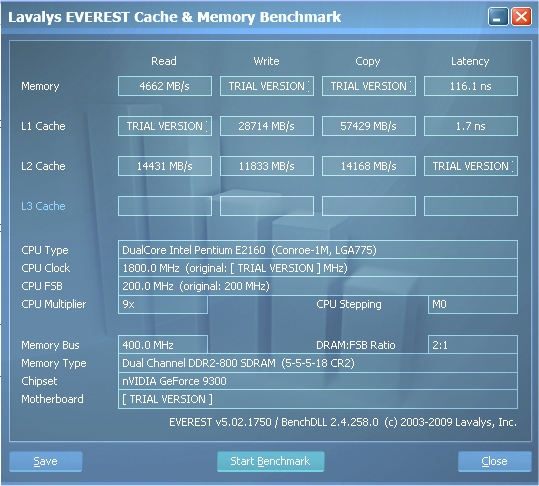

Stock results with Everest.


Overclocked results with Everest.

As you can see there was a healthy boost provided by the increased CPU clock speed.

Next up was Futuremark's PCMark05:

Stock PCMark05 score @ 1280x1024

Physics and 3D 126.89 FPS
3D - Pixel Shader 82.79 FPS
Web Page Rendering 2.4 Pages/s
File Decryption 49.6 MB/s
2D Graphics Memory - 64 Lines 510.71 FPS
Multithreaded Test 2
Text Edit 119.36 Pages/s
Image Decompression 25.2 MPixels/s
Multithreaded Test 3
File Compression 4.21 MB/s
File Encryption 23.57 MB/s

Overclocked PCMark05 score @ 1280x1024

Physics and 3D 158.98 FPS
3D - Pixel Shader 89.2 FPS
Web Page Rendering 3.88 Pages/s
File Decryption 82.3 MB/s
2D Graphics Memory - 64 Lines 538.07 FPS
Multithreaded Test 2
Text Edit 196.39 Pages/s
Image Decompression 41.82 MPixels/s
Multithreaded Test 3
File Compression 6.88 MB/s
File Encryption 40.96 MB/s

As you can see there was a sizeable boost provided by the combination of both CPU and GPU overclocks. Some of the results are almost double - quite an increase i'm sure you'll agree!

Sticking with Futuremark i decided to move onto their gaming benchmark program 3DMark06.

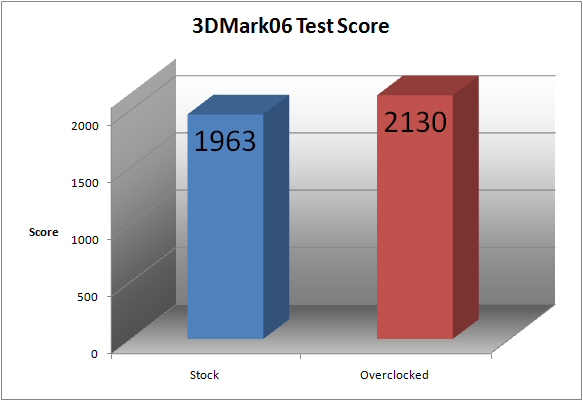

Stock and overclocked results for 3DMark06.

The actual results seem to show that the GeForce 9300-ITX WiFi's onboard GPU isn't up to much. For example my old ATi X850 did better and my 7800GT managed a score more than double this amount.

Lets see how it does with real world games...
